Mjic X Male Din 2353S (Sealed) 9606S-08-S12-20

Specifications

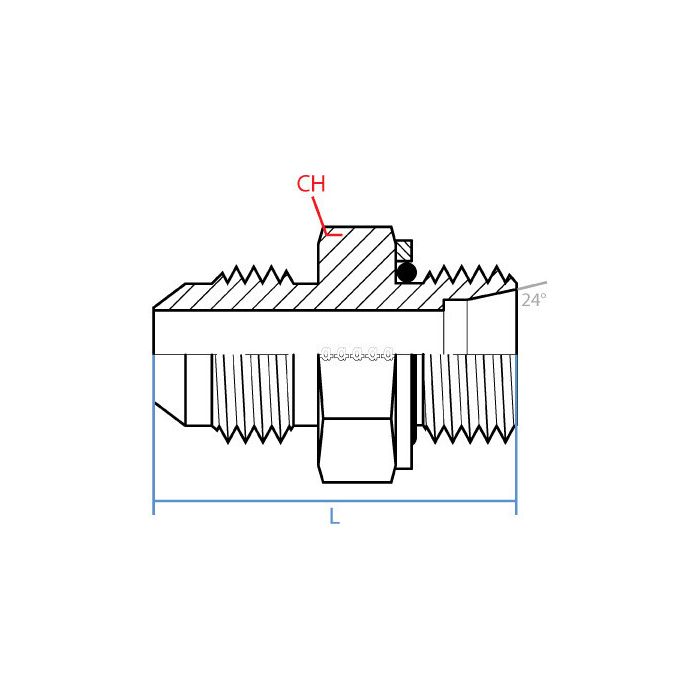

CH Width 27mm	L Length 37.3mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout 3/4 - 16 UNF	Side 1 Gender M	Side 1 Size 1/2"	Side 1 Type Jic	Side 2 Callout M20 X 1.5	Side 2 Gender M	Side 2 Size S12	Side 2 Type Din Tube	Alternate Part Numbers Alternate Part Number MI-06181661, Alternate Part Number MINO-03671X00169	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9606S-08-S12-20	Product Weight 0.18 lbs

Product Questions & Answers 3

Product Questions & Answers

got a line running M20 x 1.5 metric DIN tube on one end and JIC 37-degree flare on the other, this fitting bridge that gap straight across?

Question by: Travis S on Oct 10, 2025, 9:04 PM

That's exactly what this one handles. One end is a 3/4-16 UNF male JIC thread, the other is M20 x 1.5 male DIN tube, and the body runs straight through with no angle or offset. Steel construction, 37.3mm long, 27mm wrench width. If your line setup matches those thread specs on both ends, this connects them without adapters stacked on adapters.

Answer by: Customer Support on Oct 12, 2025, 6:45 AM

Will this fitting hold up okay in a hydraulic system running around 3000 PSI?

Question by: Floyd S on Apr 13, 2025, 2:33 PM

Designed for demanding industrial applications, this Adaptall fitting is made from high-grade steel to ensure reliable performance even in rigorous environments.

Answer by: Customer Support on Apr 15, 2025, 6:21 AM

got a hose end with a 3/4-16 JIC male on it, will this adapter mate up on that side?

Question by: Neal A on Jan 3, 2026, 10:14 AM

On the JIC side, it has a 3/4 - 16 UNF male thread, listed as a 1/2 inch JIC connection. That matches a 3/4 - 16 JIC female swivel that is made for 37 degree flare.

Answer by: Customer Support on Jan 4, 2026, 11:27 AM
