Mjic X Male Din 2353S (Sealed) 9606S-06-S10-18

Specifications

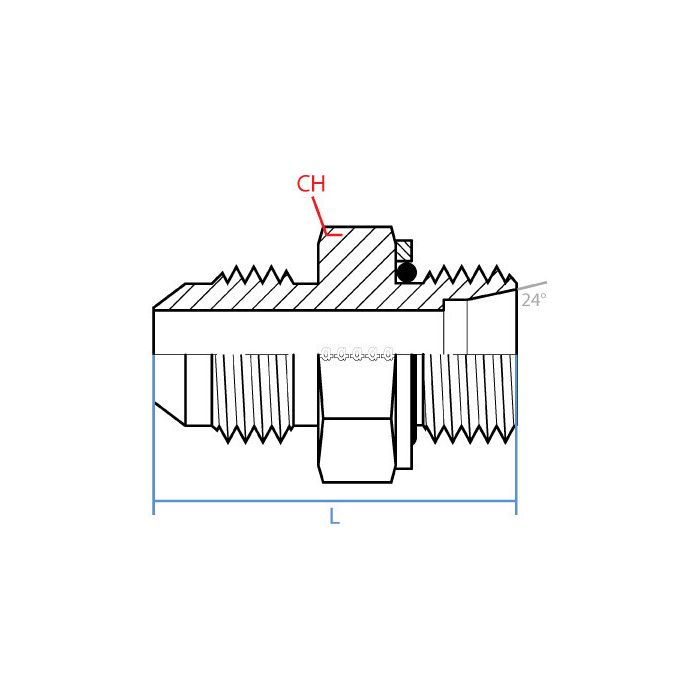

CH Width 24mm	L Length 37.2mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout 9/16 - 18 UNF	Side 1 Gender M	Side 1 Size 3/8"	Side 1 Type Jic	Side 2 Callout M18 X 1.5	Side 2 Gender M	Side 2 Size S10	Side 2 Type Din Tube	Alternate Part Numbers Alternate Part Number MI-05502306, Alternate Part Number MINO-03671X00137	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9606S-06-S10-18	Product Weight 0.11 lbs

Product Questions & Answers 3

Product Questions & Answers

trying to swap a line over, is this the straight adapter that goes from 9/16-18 JIC male to an M18x1.5 DIN tube male?

Question by: Tony T on Sep 7, 2025, 4:31 PM

For a straight metric to 37 degree flare hookup, it matches those ends: Side 1 is a 9/16-18 UNF male JIC (3/8 size) and Side 2 is an M18 x 1.5 male DIN tube end (S10).

Answer by: Customer Support on Sep 9, 2025, 6:04 AM

Will this fitting hold up in a hydraulic system running at, say, 3000 psi?

Question by: Floyd G on Jan 9, 2026, 2:40 PM

Given its steel construction, this fitting should handle typical hydraulic pressures without issue. But it's always best practice to check your system's pressure requirements against the fitting's specifications to ensure compatibility and safety.

Answer by: Customer Support on Jan 10, 2026, 2:46 PM

what's the thread size on both ends of this fitting? need to match up a JIC line to a metric DIN tube connection and wanna make sure I got the right one before I order

Question by: Neil W on Nov 9, 2025, 6:09 PM

Side one is a 9/16-18 UNF male JIC, which corresponds to a 3/8" JIC size. Side two is an M18 x 1.5 male DIN tube fitting, sized at S10. So yeah, if you're bridging a standard 37-degree flare JIC line over to a metric DIN 2353 tube connection, this is the fitting that does that job in a straight configuration.

Answer by: Customer Support on Nov 11, 2025, 5:21 PM
