Mjic X Male Din 2353S (Sealed) 9606S-06-S08-16

Specifications

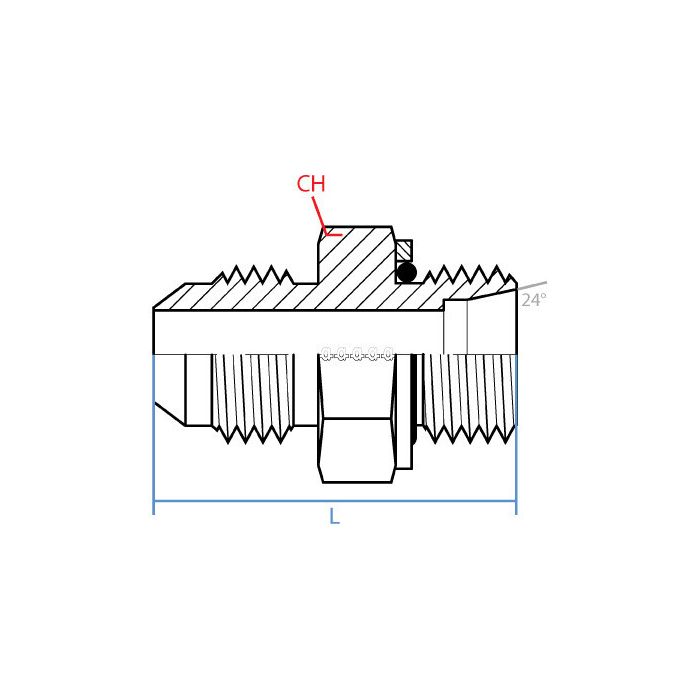

CH Width 22mm	L Length 34.9mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout 9/16 - 18 UNF	Side 1 Gender M	Side 1 Size 3/8"	Side 1 Type Jic	Side 2 Callout M16 X 1.5	Side 2 Gender M	Side 2 Size S08	Side 2 Type Din Tube	Alternate Part Numbers Alternate Part Number MI-07975833, Alternate Part Number MINO-03671X00349	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9606S-06-S08-16	Product Weight 0.11 lbs

Product Questions & Answers 3

Product Questions & Answers

Will this here fitting work with both JIC and DIN connections, or am I gonna need two different adapters?

Question by: Ray F on Apr 7, 2026, 5:14 PM

This adapter is designed to bridge the gap between JIC (9/16 - 18 UNF) and DIN 2353S (M16 X 1.5) connections, so it should work for ya.

Answer by: Customer Support on Apr 9, 2026, 12:43 PM

trying to hook a 3/8 jic hose up to a metric din tube port, is this the right adapter?

Question by: Johnny W on Mar 12, 2026, 8:06 PM

For a 3/8 inch male JIC end with 9/16-18 UNF on one side and a male DIN 2353S tube end with M16 x 1.5 on the other, that is exactly what this adapter is built for. It is a straight steel fitting with a sealed DIN 2353S style connection.

Answer by: Customer Support on Mar 14, 2026, 2:45 PM

Got a metric DIN tube fitting on one side of my line and a JIC 37-degree flare on the other, does this adapter actually bridge those two without needing extra pieces in between?

Question by: Harold K on Apr 14, 2025, 8:34 PM

Yeah, that's exactly what this one's built for. One end is a 9/16-18 UNF male JIC connection, which is your 37-degree flare side, and the other end is M16 x 1.5 male DIN tube. Both connections are male, so you're threading this straight into female ports or fittings on each end. No extra adapters needed to make that metric-to-JIC crossover work.

Answer by: Customer Support on Apr 16, 2025, 1:41 PM
