Mjic X Male Din 2353S (Sealed)

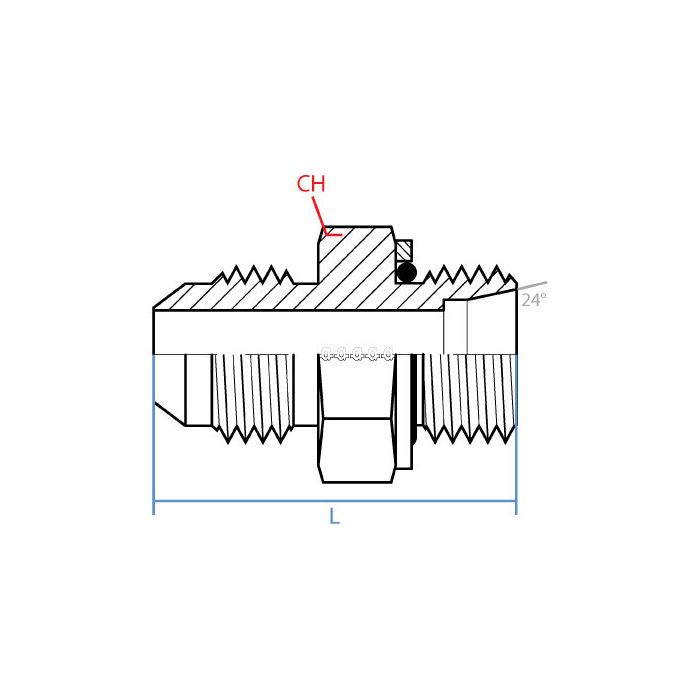

CH Width 22mm	L Length 36.2mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout 7/16 - 20 UNF	Side 1 Gender M	Side 1 Size 1/4"	Side 1 Type Jic	Side 2 Callout M16 X 1.5	Side 2 Gender M	Side 2 Size S08	Side 2 Type Din Tube	Alternate Part Numbers Alternate Part Number MI-06700904, Alternate Part Number MINO-03671X64514	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9606S-04-S08-16	Product Weight 0.09 lbs

Product Questions & Answers 1

Product Questions & Answers

got a line running M16 x 1.5 metric DIN tube on one end and need to tie into a 7/16-20 JIC fitting on the other side, this the right part for that?

Question by: Vince W on Jan 29, 2026, 4:39 PM

That's what this adapter is built for. One side is a 7/16-20 UNF JIC male, the other is M16 x 1.5 DIN tube male, so it bridges those two thread standards in a single straight fitting. It's a sealed connection too, so you're not relying on thread sealant tape or anything extra to keep it tight. Steel construction, 36.2mm overall length, 22mm wrench width. Solid piece for that kind of transition.

Answer by: Customer Support on Jan 31, 2026, 3:37 PM
