Mjic X Male Din 2353S (Sealed)

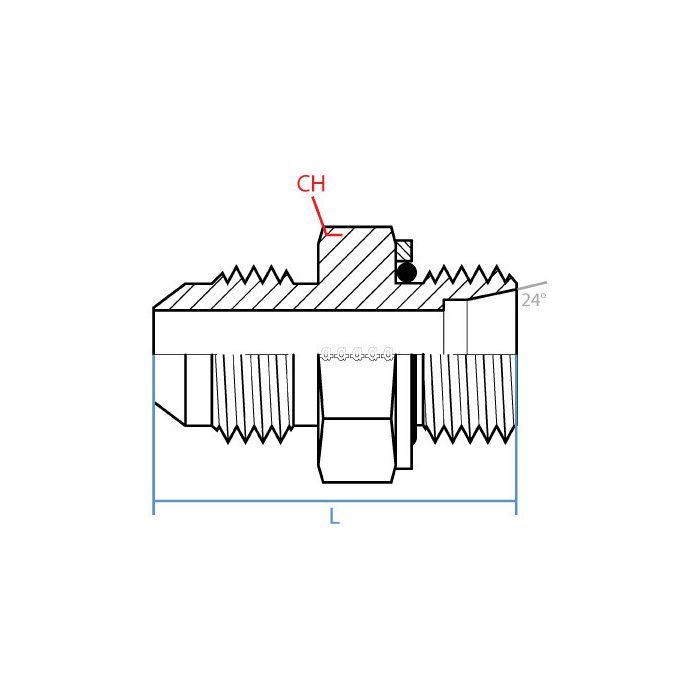

CH Width 19mm	L Length 34.4mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout 7/16 - 20 UNF	Side 1 Gender M	Side 1 Size 1/4"	Side 1 Type Jic	Side 2 Callout M14 X 1.5	Side 2 Gender M	Side 2 Size S06	Side 2 Type Din Tube	Alternate Part Numbers Alternate Part Number MI-07975831, Alternate Part Number MINO-03671X00348	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9606S-04-S06-14	Product Weight 0.24 lbs

Product Questions & Answers 2

Product Questions & Answers

got a hose with 7/16-20 JIC on it, will this adapt over to an M14 x 1.5 DIN tube fitting?

Question by: Sheila E on Aug 25, 2025, 3:08 PM

For converting between those two ends, it matches up as a straight steel adapter with a 7/16 - 20 UNF male JIC on one side and an M14 x 1.5 male DIN 2353S tube fitting on the other.

Answer by: Customer Support on Aug 27, 2025, 11:45 AM

What size is that metric side on this thing?

Question by: Bobby H on Jan 17, 2026, 6:29 PM

It’s got a M14 x 1.5 male DIN tube fitting. That's the metric side you're asking about.

Answer by: Customer Support on Jan 18, 2026, 6:32 PM
