Mjic X Male Din 2353 S 9606-24-S38-52

Specifications

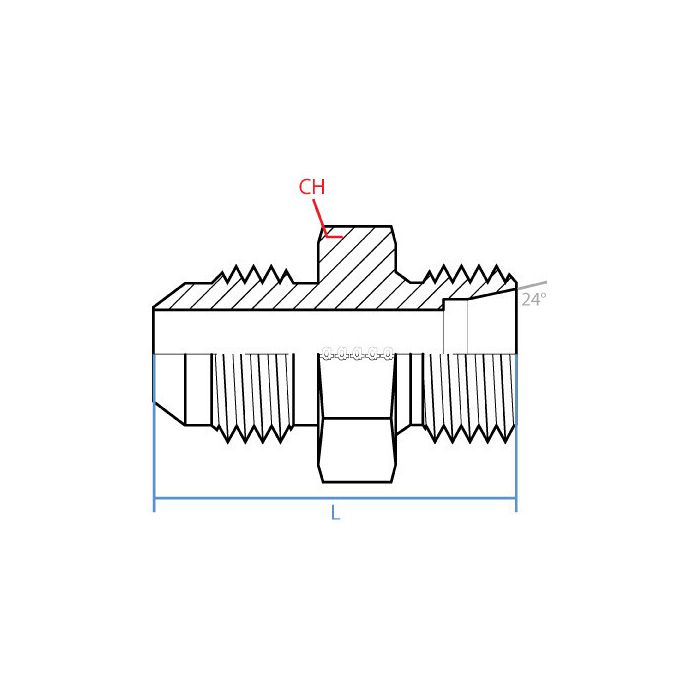

CH Width 57mm	L Length 68.9mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout 1-7/8 - 12 UN	Side 1 Gender M	Side 1 Size 1-1/2"	Side 1 Type Jic	Side 2 Callout M52 X 2.0	Side 2 Gender M	Side 2 Size S38	Side 2 Type Din Tube	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9606-24-S38-52	Product Weight 1.15 lbs

Product Questions & Answers 3

Product Questions & Answers

trying to tie a 1-1/2 jic hose end into a DIN 2353 S38 tube, is this the right adapter?

Question by: Randy E on Mar 16, 2026, 7:35 AM

For that kind of mix-and-match connection, it’s a straight steel adapter with a 1-1/2 inch Male JIC end using 1-7/8-12 UN threads, and a Male DIN 2353 S38 end with M52 x 2.0 threads. The S38 callout is the DIN heavy series size for 38 mm tube OD.

Answer by: Customer Support on Mar 17, 2026, 7:55 PM

Will this here adapter hold up alright in a hydraulic system that sees some pretty good pressure?

Question by: Wayne B on Jun 29, 2025, 11:51 AM

Manufactured from steel, this adapter is well-suited for demanding hydraulic system environments. It's designed to provide reliable thread engagement between inch-series JIC and metric DIN standards.

Answer by: Customer Support on Jun 30, 2025, 2:38 PM

Got a setup running 38mm DIN tube on the heavy series side, does this adapter actually mate up right on both ends, or do I need something in between?

Question by: Wayne Y on Oct 24, 2025, 11:29 AM

Both ends are spec'd for exactly that configuration. The DIN side carries an M52 x 2.0 thread with an S38 designation, which corresponds to 38mm OD tube in the DIN 2353 heavy series. The JIC side is a 1-1/2" Male JIC running a 1-7/8-12 UN thread. Straight connection, no intermediate fittings needed.

Answer by: Customer Support on Oct 26, 2025, 9:52 AM
