Mjic X Male Din 2353 S 9606-20-S38-52

Specifications

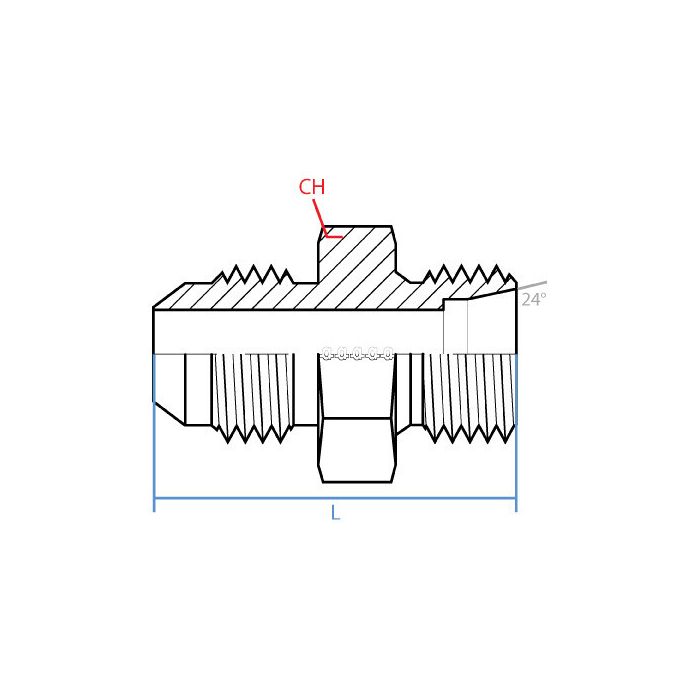

CH Width 57mm	L Length 64.9mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout 1-5/8 - 12 UN	Side 1 Gender M	Side 1 Size 1-1/4"	Side 1 Type Jic	Side 2 Callout M52 X 2.0	Side 2 Gender M	Side 2 Size S38	Side 2 Type Din Tube	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9606-20-S38-52	Product Weight 1.20 lbs

Product Questions & Answers 3

Product Questions & Answers

Got a machine running 1-1/4" JIC lines and need to tie into a DIN 2353 S38 port, this straight adapter do the trick?

Question by: Darryl T on Nov 15, 2025, 12:27 PM

That's what this fitting is built for. One end is a 1-1/4" JIC male with a 1-5/8-12 UN thread, and the other end is a male DIN 2353 tube connection in S38 size with an M52 x 2.0 thread. Straight configuration, no offsets or angles, so it keeps the hydraulic connections clean when the two ports line up directly. Steel construction holds up well in standard hydraulic service.

Answer by: Customer Support on Nov 16, 2025, 4:01 PM

got a hose end that’s 1-1/4 JIC male. will this adapter get me over to a DIN 2353 S38 tube fitting?

Question by: Neil R on Jan 18, 2026, 8:45 PM

For that kind of hookup, the fit is a 1-1/4 inch JIC male on Side 1 with a 1-5/8 - 12 UN thread, and a DIN 2353 male tube end on Side 2 in size S38 with an M52 x 2.0 thread.

Answer by: Customer Support on Jan 20, 2026, 6:22 AM

Is this here adapter made of steel all the way through?

Question by: Howard G on Jun 17, 2025, 7:18 PM

For durability and reliable performance in hydraulic applications, this Adaptall straight fitting is indeed made from steel.

Answer by: Customer Support on Jun 19, 2025, 1:40 PM
