Mjic X Male Din 2353 S

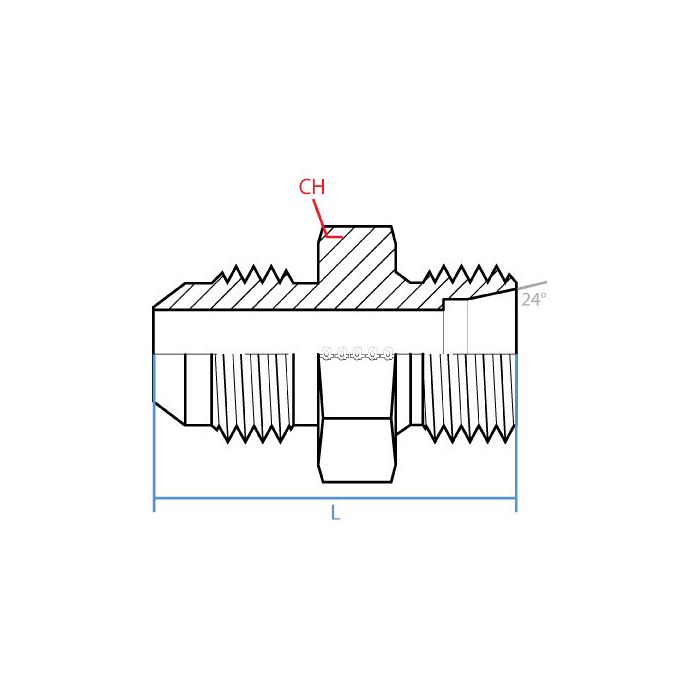

CH Width 41mm	L Length 56.8mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout 1-5/16 - 12 UN	Side 1 Gender M	Side 1 Size 1"	Side 1 Type Jic	Side 2 Callout M36 X 2.0	Side 2 Gender M	Side 2 Size S25	Side 2 Type Din Tube	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9606-16-S25-36	Product Weight 0.60 lbs

Product Questions & Answers 1

Product Questions & Answers

Got a hydraulic line running a 1-inch JIC fitting that needs to tie into a metric DIN tube connection, this adapter do that job?

Question by: Sheila O on Nov 22, 2025, 7:57 PM

That's what this one's built for. One end is a 1-5/16-12 UN male JIC thread, sized for a 1-inch nominal line. The other end is an M36 x 2.0 male DIN thread rated for the S25 tube series under DIN 2353. Both ends are male, so you'd need female counterparts on each side of your existing connections. Steel construction handles the pressure and temperature demands you'd expect in an industrial hydraulic circuit without any fuss.

Answer by: Customer Support on Nov 24, 2025, 10:41 AM
