Mjic X Male Din Tube Only 9606-12-S20-30

Specifications

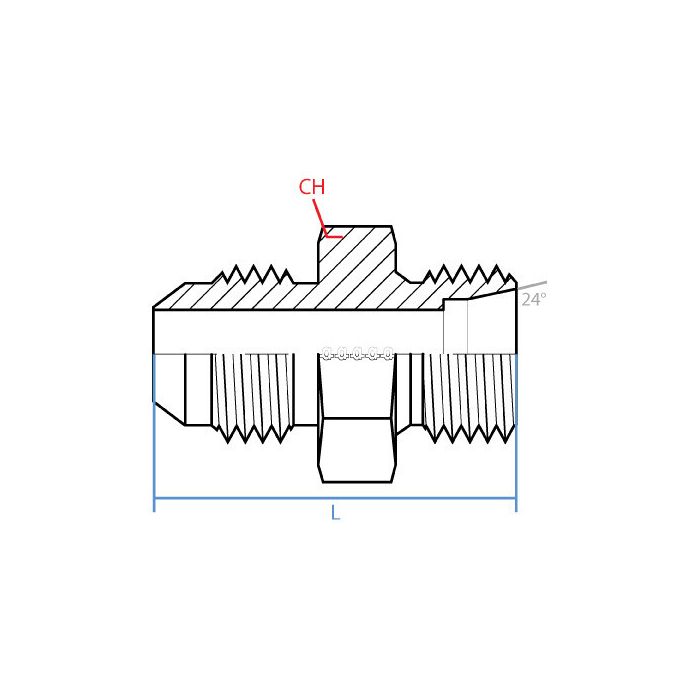

CH Width 33mm	L Length 51.7mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout 1-1/16 - 12 UN	Side 1 Gender M	Side 1 Size 3/4"	Side 1 Type Jic	Side 2 Callout M30 X 2.0	Side 2 Gender M	Side 2 Size S20	Side 2 Type Din Tube	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9606-12-S20-30	Product Weight 0.45 lbs

Product Questions & Answers 3

Product Questions & Answers

trying to match up an old fitting, is this the straight steel adapter that goes 3/4 jic male to an S20 DIN tube male?

Question by: Harvey P on May 11, 2025, 4:04 PM

Matches that setup. Side 1 is a 3/4 inch JIC male with a 1-1/16 - 12 UN thread callout, and Side 2 is an S20 DIN tube male with an M30 x 2.0 callout. It is a straight steel adapter.

Answer by: Customer Support on May 13, 2025, 6:34 AM

What exactly is this adapter connecting on each end? Got a JIC fitting on one side and not sure what the other end hooks up to.

Question by: Patty P on Jul 8, 2025, 1:25 PM

One end is a 3/4" JIC male, which runs on a 1-1/16-12 UN thread. The other end is an S20 DIN tube male connection with an M30 X 2.0 thread. So if you've got a metric DIN tube port on one side and a standard JIC line on the other, this is the piece that bridges those two together. Both sides are male, so make sure your mating ports are female on both ends before you order.

Answer by: Customer Support on Jul 9, 2025, 1:55 PM

What exactly is the difference between the two ends on this adapter?

Question by: Merle E on Apr 22, 2025, 2:08 PM

Functionally, one side is a 3/4" JIC male, good for connections using that standard, while the other side adapts to S20 DIN tube male connections. So it's a handy way to bridge between those two different types of hydraulic fittings.

Answer by: Customer Support on Apr 24, 2025, 6:24 AM
