Mjic X Male Din 2353 S 9606-12-S16-24

Specifications

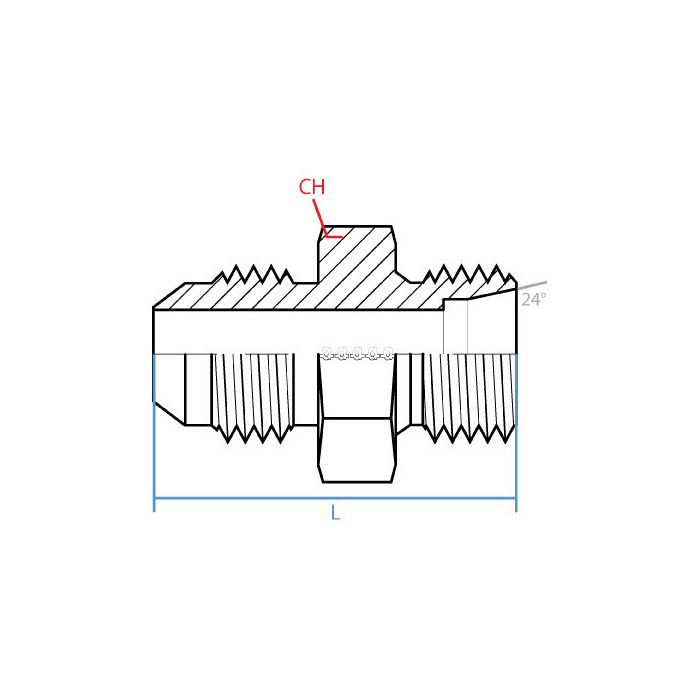

CH Width 32mm	L Length 48.9mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout 1-1/16 - 12 UN	Side 1 Gender M	Side 1 Size 3/4"	Side 1 Type Jic	Side 2 Callout M24 X 1.5	Side 2 Gender M	Side 2 Size S16	Side 2 Type Din Tube	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9606-12-S16-24	Product Weight 0.35 lbs

Product Questions & Answers 2

Product Questions & Answers

got a hose end that’s 3/4 JIC male, and my block takes an S16 DIN tube thread. is this the straight adapter for that?

Question by: Neal T on Jun 19, 2025, 3:04 PM

For tying those two standards together, yes. One side is a 3/4 inch Male JIC with 1-1/16-12 UN threads, and the other side is an S16 Male DIN 2353 tube connection with M24 x 1.5 threads, in a straight male-to-male layout.

Answer by: Customer Support on Jun 20, 2025, 7:42 PM

got a machine here that runs JIC on the hydraulic lines but the manifold block we're swapping in uses DIN 2353 metric ports, would this adapter bridge that gap straight inline without needing extra fittings in between?

Question by: Phil A on Mar 14, 2026, 9:46 PM

That's exactly the kind of situation this fitting handles. One end is a 3/4" Male JIC with a 1-1/16-12 UN thread, and the other is an S16 Male DIN 2353 metric tube connection at M24 x 1.5. The straight configuration lets you run it inline without adding elbows or extra couplers, so if your routing allows for a straight shot between the two connection points, this should bolt right in without complication.

Answer by: Customer Support on Mar 16, 2026, 4:37 PM
