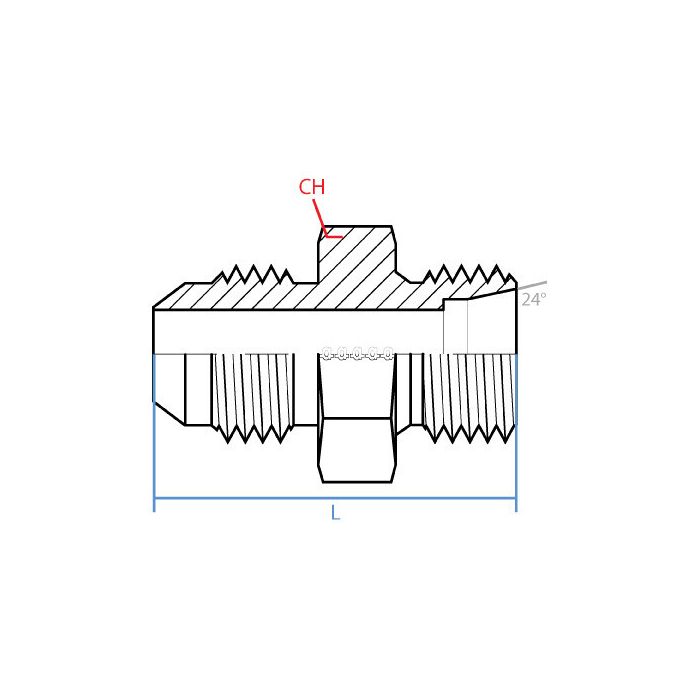

Mjic X Male Din 2353 S

CH Width 27mm	L Length 42.7mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout 7/8 - 14 UNF	Side 1 Gender M	Side 1 Size 5/8"	Side 1 Type Jic	Side 2 Callout M20 X 1.5	Side 2 Gender M	Side 2 Size S12	Side 2 Type Din Tube	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9606-10-S12-20	Product Weight 0.20 lbs

Product Questions & Answers 1

Product Questions & Answers

got a line running M20 x 1.5 DIN tube on one end and need to tie into a 7/8-14 JIC fitting, this the right piece for that?

Question by: Ray W on May 16, 2025, 8:16 PM

That's what this adapter is built for. One side is a 7/8-14 UNF JIC male and the other is an M20 x 1.5 DIN tube male, so it bridges those two thread standards in a single straight fitting. The JIC side covers a 5/8" JIC size and the DIN side is rated S12, so as long as your line sizes match up, you're good to go.

Answer by: Customer Support on May 18, 2025, 10:26 AM
