Mjic X Male Din Tube Only

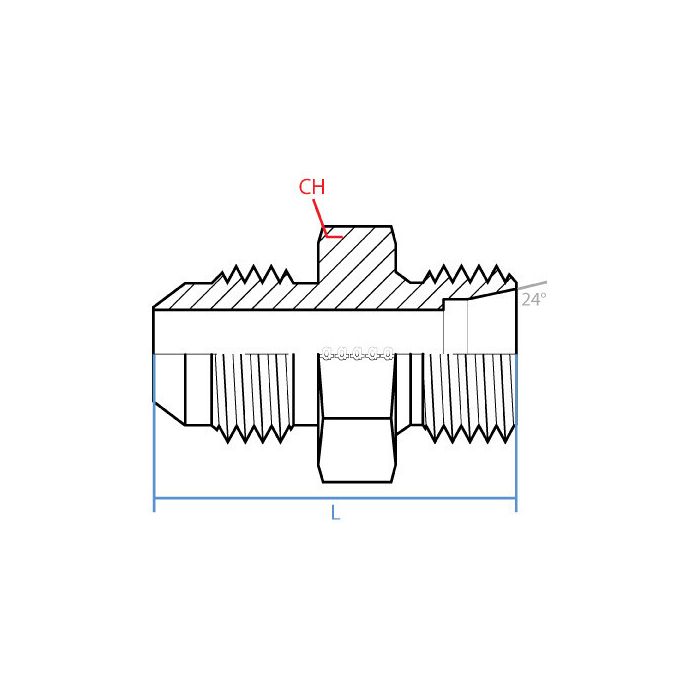

CH Width 27mm	L Length 42.6mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout 3/4 - 16 UNF	Side 1 Gender M	Side 1 Size 1/2"	Side 1 Type Jic	Side 2 Callout M22 X 1.5	Side 2 Gender M	Side 2 Size S14	Side 2 Type Din Tube	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9606-08-S14-22	Product Weight 0.15 lbs

Product Questions & Answers 1

Product Questions & Answers

What size tubing does the DIN side of this adapter work with, and what's the thread spec on that end?

Question by: Carl M on Jan 30, 2026, 6:15 AM

The DIN tube side is sized for S14 tubing and runs an M22 x 1.5 thread. The JIC side is a 1/2" male with a 3/4-16 UNF thread. So if you're bridging a metric DIN tube connection over to a JIC fitting, this straight steel adapter handles that transition in one piece.

Answer by: Customer Support on Jan 31, 2026, 4:08 PM
