Mjic X Male Din 2353 S 9606-08-S12-20

Specifications

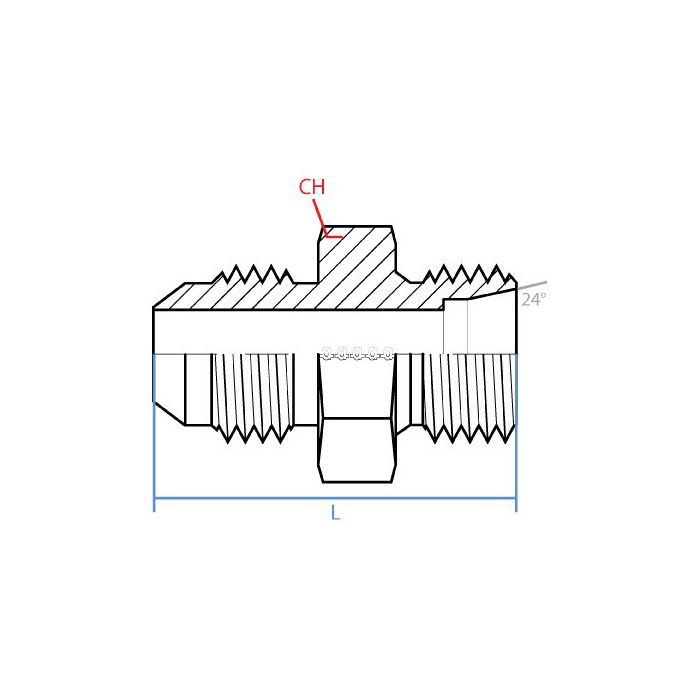

CH Width 25.5mm	L Length 43mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout 3/4 - 16 UNF	Side 1 Gender M	Side 1 Size 1/2"	Side 1 Type Jic	Side 2 Callout M20 X 1.5	Side 2 Gender M	Side 2 Size S12	Side 2 Type Din Tube	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9606-08-S12-20	Product Weight 0.20 lbs

Product Questions & Answers 3

Product Questions & Answers

Got a line running M20 x 1.5 metric tube on one end and need to tie into a 3/4-16 JIC fitting on the other, this adapter do that straight through?

Question by: Dale H on May 19, 2025, 9:55 PM

That's what this one's built for. One end is a male JIC at 3/4-16 UNF, the other is a male DIN tube connection at M20 x 1.5 with an S12 designation. Both sides are male, so you'll need female counterparts on each line. The body is steel and runs straight through with no bends or offsets, 43mm tip to tip.

Answer by: Customer Support on May 21, 2025, 6:08 AM

got a hose end that’s 3/4-16 UNF JIC male, will this adapt over to an M20 x 1.5 DIN tube connection?

Question by: Vince R on Dec 31, 2025, 9:23 PM

It’s a straight steel adapter made for that exact pairing: side 1 is a 3/4 - 16 UNF male JIC (listed as 1/2 inch size), and side 2 is an M20 x 1.5 male DIN tube connection in S12.

Answer by: Customer Support on Jan 2, 2026, 6:51 AM

So, this here adapter has different sizes on each end, right? Just want to make sure I'm understanding it correctly.

Question by: Ronnie A on Jan 29, 2026, 6:20 AM

Yeah, that’s right. It’s got a 3/4 - 16 UNF male JIC connection on one side, which is a 1/2" size, and an M20 X 1.5 male DIN tube connection on the other side, which is an S12 size.

Answer by: Customer Support on Jan 30, 2026, 8:17 PM
