Mjic X Male Din 2353 S

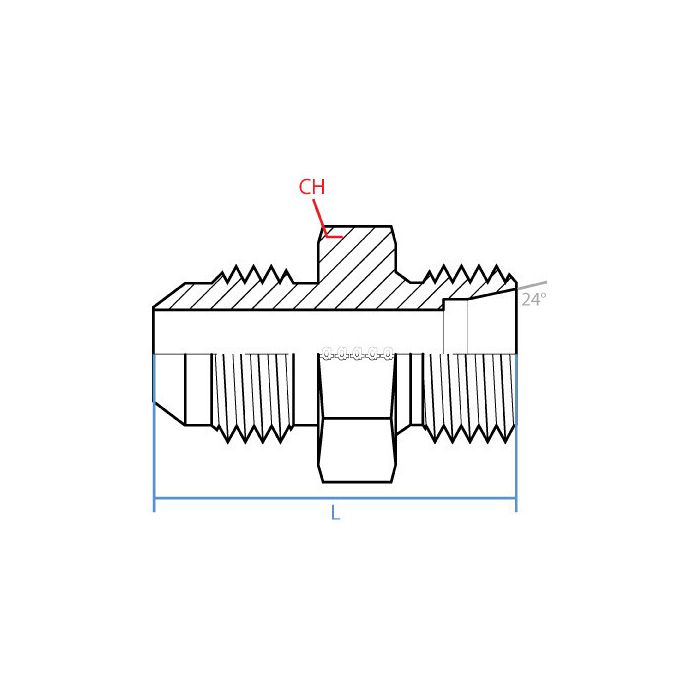

CH Width 24mm	L Length 40.3mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout 3/4 - 16 UNF	Side 1 Gender M	Side 1 Size 1/2"	Side 1 Type Jic	Side 2 Callout M18 X 1.5	Side 2 Gender M	Side 2 Size S10	Side 2 Type Din Tube	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9606-08-S10-18	Product Weight 0.15 lbs

Product Questions & Answers 1

Product Questions & Answers

got a hose end thats 1/2 jic, will this adapter screw right onto it and give me an m18 x 1.5 din end?

Question by: Ross M on Nov 6, 2025, 11:12 AM

For a 1/2 inch Male JIC connection with 3/4 to 16 UNF threads, this adapter mates that to an M18 x 1.5 Male DIN 2353 S10 tube end. Both sides on this part are male, so it’s meant to thread into matching female ports or nuts on each side.

Answer by: Customer Support on Nov 8, 2025, 6:03 AM
