Mjic X Male Din Tube Only

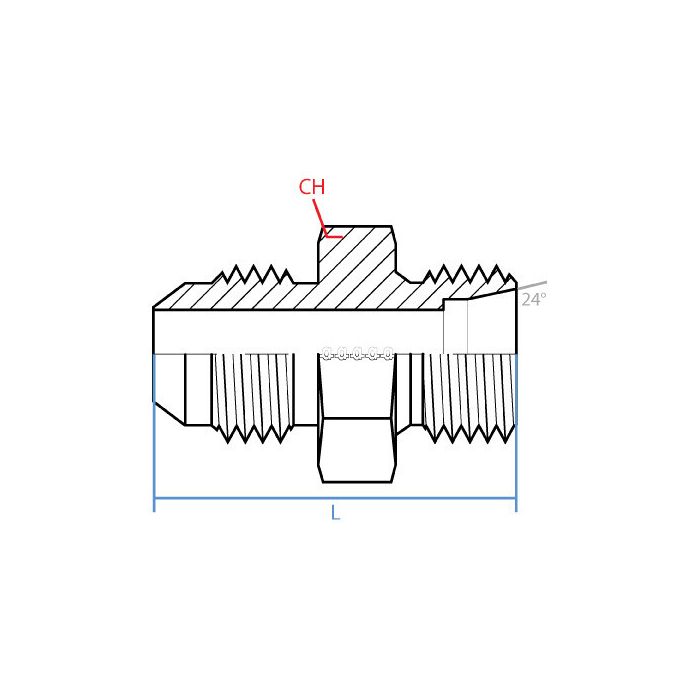

CH Width 24mm	L Length 36.4mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout 9/16 - 18 UNF	Side 1 Gender M	Side 1 Size 3/8"	Side 1 Type Jic	Side 2 Callout M18 X 1.5	Side 2 Gender M	Side 2 Size S10	Side 2 Type Din Tube	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9606-06-S10-18	Product Weight 0.15 lbs

Product Questions & Answers 1

Product Questions & Answers

Got a hydraulic line running 3/8" JIC on one end and need to tie into a DIN tube fitting on the other side, this adapter do that straight through?

Question by: Ricky B on Mar 8, 2026, 7:41 AM

That's what it's built for. One end is a 3/8" JIC male with a 9/16-18 UNF thread, and the other is an S10 male DIN tube connection with an M18 x 1.5 thread. Straight configuration, no bends or offsets, so it runs clean inline. Steel construction, 36.4mm long and 24mm wide.

Answer by: Customer Support on Mar 9, 2026, 4:55 PM
