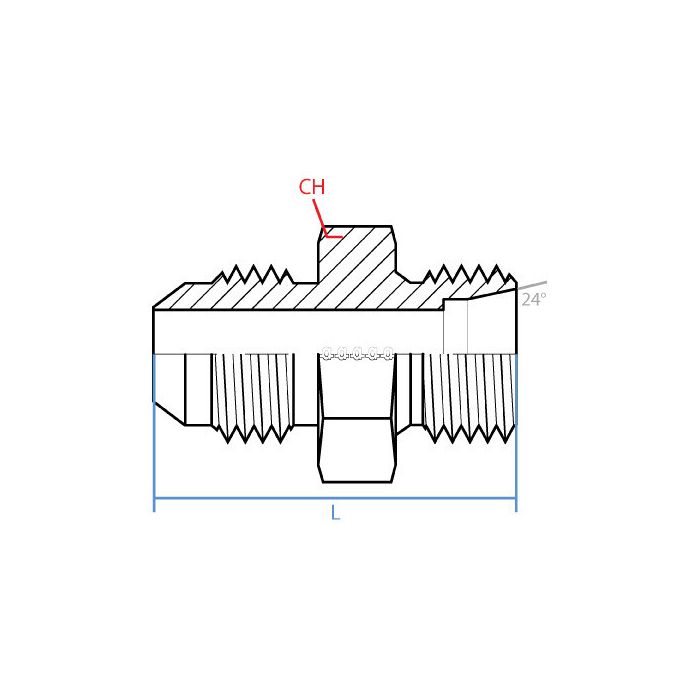

Mjic X Male Din Tube Only

CH Width 22mm	L Length 33.8mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout 7/16 - 20 UNF	Side 1 Gender M	Side 1 Size 1/4"	Side 1 Type Jic	Side 2 Callout M16 X 1.5	Side 2 Gender M	Side 2 Size S08	Side 2 Type Din Tube	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9606-04-S08-16	Product Weight 0.10 lbs

Product Questions & Answers 1

Product Questions & Answers

Got a machine running JIC lines on one side and metric DIN tube fittings on the other, does this adapter go straight between the two without needing extra pieces?

Question by: Freddie M on Oct 7, 2025, 9:22 AM

That's what this one's built for. One end is a 1/4" Male JIC with a 7/16-20 UNF thread, and the other is an M16 x 1.5 Male DIN Tube in S08 sizing. It's a single inline piece, straight configuration, so there's no need for additional couplers or adapters between the two connection types. Steel construction holds up in standard hydraulic service without any fuss.

Answer by: Customer Support on Oct 8, 2025, 9:19 PM
