Mjic X Male Din 2353 S

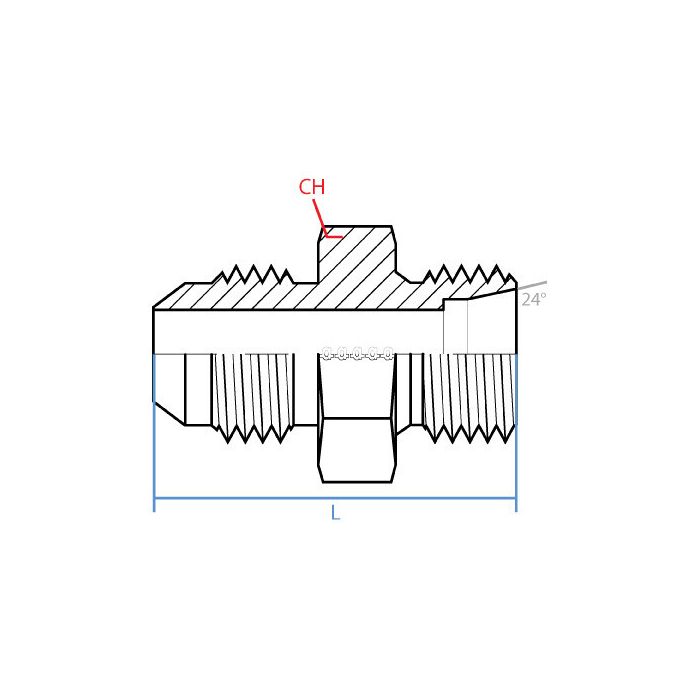

CH Width 19mm	L Length 32.9mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout 7/16 - 20 UNF	Side 1 Gender M	Side 1 Size 1/4"	Side 1 Type Jic	Side 2 Callout M14 X 1.5	Side 2 Gender M	Side 2 Size S06	Side 2 Type Din Tube	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9606-04-S06-14	Product Weight 0.10 lbs

Product Questions & Answers 2

Product Questions & Answers

got a JIC line running 7/16-20 UNF on one end and need to tie into a metric DIN tube fitting on the other, this the right piece for that?

Question by: Rhonda P on Jul 1, 2025, 12:28 PM

That's what this fitting handles. One side is a 7/16-20 UNF male JIC, which is your 1/4" JIC connection, and the other side steps over to an M14 x 1.5 male DIN tube fitting in the S06 size. Straight body, no bends or offsets, so it drops right in where space isn't a concern. Steel construction throughout.

Answer by: Customer Support on Jul 3, 2025, 8:45 AM

Hey, just want to make sure this fitting will work. I got a 1/4" JIC on one side and need to hook it up to a M14 x 1.5 DIN tube. This will do the trick, right?

Question by: Tony P on Jun 18, 2025, 4:36 PM

It's designed to connect a 7/16 - 20 UNF male JIC (1/4" size) to an M14 X 1.5 male DIN tube (S06 size).

Answer by: Customer Support on Jun 20, 2025, 6:46 AM
