Mjic X Male Din 2353L (Sealed) 9605S-20-L35-45

Specifications

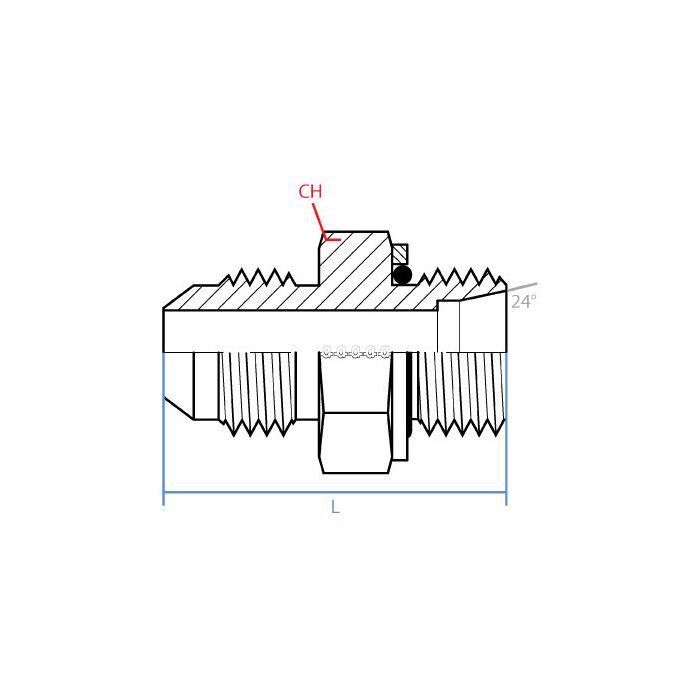

CH Width 55mm	L Length 60.4mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout 1-5/8 - 12 UN	Side 1 Gender M	Side 1 Size 1-1/4"	Side 1 Type Jic	Side 2 Callout M45 X 2.0	Side 2 Gender M	Side 2 Size L35	Side 2 Type Din Tube	Alternate Part Numbers Alternate Part Number MI-07976525, Alternate Part Number MINO-03671X00502	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9605S-20-L35-45	Product Weight 0.25 lbs

Product Questions & Answers 3

Product Questions & Answers

What kind of steel is this made out of? Just curious about its durability for heavy use.

Question by: Eddie A on Oct 17, 2025, 8:59 AM

It's constructed from durable steel, so it should hold up well in most industrial applications.

Answer by: Customer Support on Oct 19, 2025, 6:00 AM

What exactly are the two thread types on this fitting, and what sizes are we talkin about?

Question by: Troy P on Nov 21, 2025, 11:23 AM

One end is a male JIC with a 1-5/8 - 12 UN thread, which corresponds to a 1-1/4 inch JIC size. The other end is a male DIN 2353L tube fitting with an M45 X 2.0 metric thread, sized at L35. Both ends are male, so keep that in mind when planning your connection setup.

Answer by: Customer Support on Nov 23, 2025, 6:17 AM

trying to swap a fitting out, is this one the straight mjic to male din 2353L sealed adapter with the 1-5/8-12 on one side?

Question by: Rusty M on Sep 13, 2025, 11:52 AM

For a straight adapter that goes from a male JIC thread to a male DIN 2353L metric tube thread, it matches those callouts: Side 1 is JIC male with 1-5/8 - 12 UN and a 1-1/4 inch size, and Side 2 is DIN tube male with M45 x 2.0 and size L35.

Answer by: Customer Support on Sep 15, 2025, 7:57 AM
