Mjic X Male Din 2353L (Sealed) 9605S-16-L28-36

Specifications

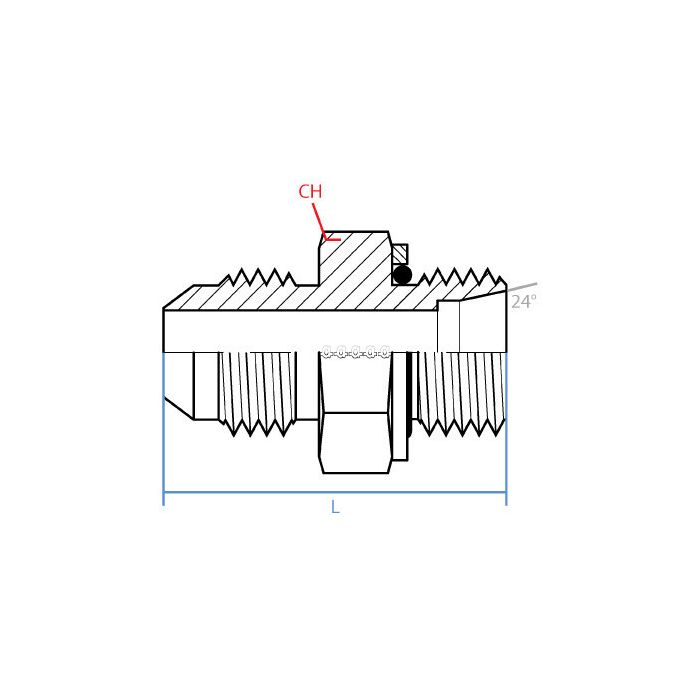

CH Width 41mm	L Length 53.3mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout 1-5/16 - 12 UN	Side 1 Gender M	Side 1 Size 1"	Side 1 Type Jic	Side 2 Callout M36 X 2.0	Side 2 Gender M	Side 2 Size L28	Side 2 Type Din Tube	Alternate Part Numbers Alternate Part Number MI-07127134, Alternate Part Number MINO-03671X64915	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9605S-16-L28-36	Product Weight 0.25 lbs

Product Questions & Answers 2

Product Questions & Answers

What exactly is the thread setup on both ends of this adapter? Got a metric DIN line on one side and need to make sure the other end matches up with my JIC fitting before I order.

Question by: Earl F on Feb 15, 2026, 7:56 AM

One end is a 1-5/16 - 12 UN male JIC connection, sized at 1 inch. The other end is an M36 X 2.0 male DIN tube connection, sized at L28. Both ends are male, so you'll need female counterparts on each side of whatever assembly you're building. The overall length runs 53.3mm with a 41mm wrench width, and the whole thing is straight, no angle.

Answer by: Customer Support on Feb 17, 2026, 6:57 AM

i’ve got a hose end that’s 1-5/16 - 12 UN JIC male, will this adapter match up on that side?

Question by: Ralph P on Sep 29, 2025, 6:35 AM

On the JIC end, it’s a 1-5/16 - 12 UN male JIC connection (listed as 1 inch size), so it matches fittings that call for that exact JIC thread and gender.

Answer by: Customer Support on Oct 1, 2025, 8:39 AM
