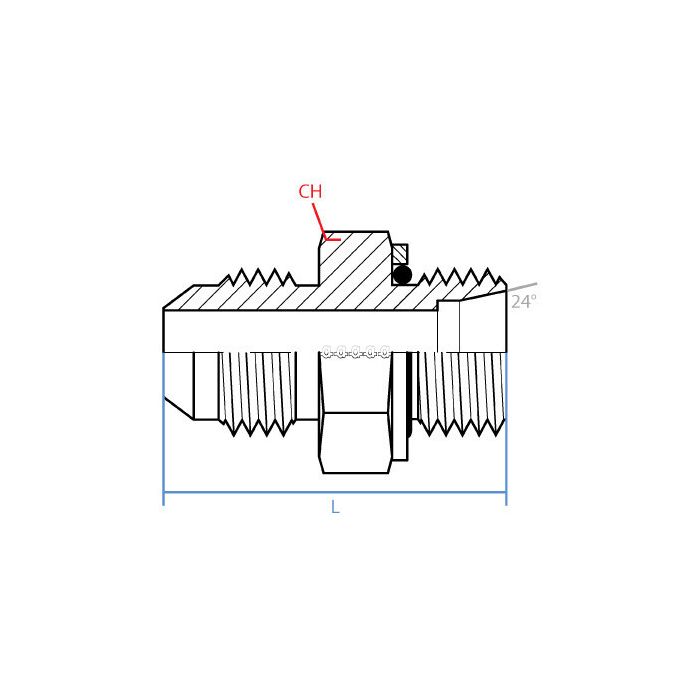

Mjic X Male Din 2353L (Sealed)

CH Width 36mm	L Length 51.8mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout 1-1/16 - 12 UN	Side 1 Gender M	Side 1 Size 3/4"	Side 1 Type Jic	Side 2 Callout M30 X 2.0	Side 2 Gender M	Side 2 Size L22	Side 2 Type Din Tube	Alternate Part Numbers Alternate Part Number ME09605-1222, Alternate Part Number MI-07339219, Alternate Part Number MINO-03671X58155	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9605S-12-L22-30	Product Weight 0.25 lbs

Product Questions & Answers 1

Product Questions & Answers

trying to mate up a 3/4 JIC male fitting to a metric DIN tube connection on some hydraulic equipment we got in, would this adapter do the trick?

Question by: Tommy E on Jul 30, 2025, 11:22 AM

That's exactly what this fitting is built for. Side 1 is a 1-1/16-12 UN male JIC, which covers your 3/4" JIC connection, and Side 2 is an M30 x 2.0 male DIN tube fitting sized at L22. So yeah, it bridges that metric-to-37-degree flare gap cleanly. Steel construction, straight configuration, no adjustable ends to fuss with.

Answer by: Customer Support on Jul 31, 2025, 9:37 PM
