Mjic X Male Din 2353L (Sealed) 9605S-12-L18-26

Specifications

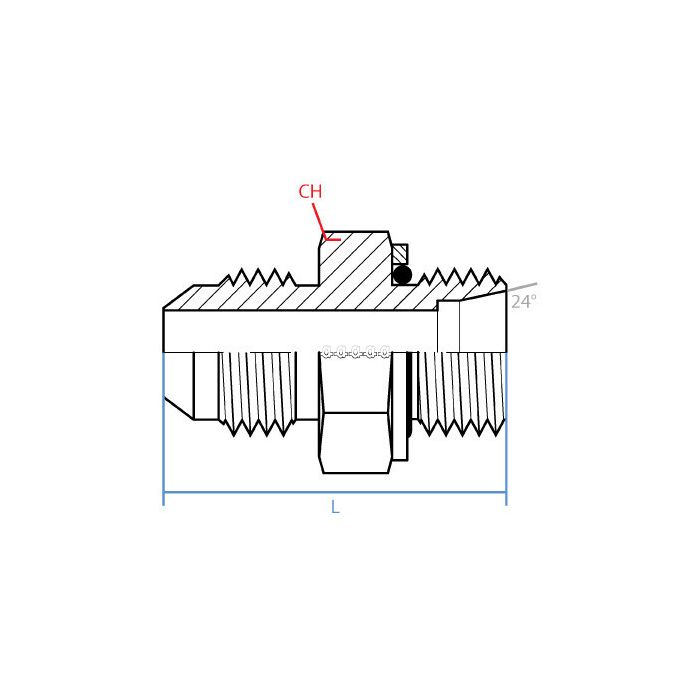

CH Width 36mm	L Length 51.8mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout 1-1/16 - 12 UN	Side 1 Gender M	Side 1 Size 3/4"	Side 1 Type Jic	Side 2 Callout M26 X 1.5	Side 2 Gender M	Side 2 Size L18	Side 2 Type Din Tube	Alternate Part Numbers Alternate Part Number MI-07880835, Alternate Part Number MINO-03671X00347	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9605S-12-L18-26	Product Weight 0.38 lbs

Product Questions & Answers 3

Product Questions & Answers

trying to hook a 1-1/16 - 12 UN JIC line over to a DIN tube, is this the right adapter?

Question by: Joyce M on May 17, 2025, 11:05 AM

For that kind of crossover, it matches up as a straight male to male adapter with a 1-1/16 - 12 UN male JIC on one side and an M26 x 1.5 male DIN tube end on the other, sized for L18.

Answer by: Customer Support on May 18, 2025, 9:21 PM

What kind of stuff is this fitting made of?

Question by: Melvin W on Dec 6, 2025, 7:36 PM

It's made from steel, so it should hold up well in most industrial setups.

Answer by: Customer Support on Dec 8, 2025, 6:54 PM

what's the thread situation on both ends of this fitting? trying to figure out if it'll work between a JIC line and a metric DIN port

Question by: Rod S on Jul 31, 2025, 6:24 AM

One end is a 1-1/16-12 UN male JIC thread, sized for 3/4" line. The other end is an M26 x 1.5 male DIN tube thread, which is the L18 size under the DIN 2353L standard. So yeah, it bridges a standard JIC fitting on one side to a metric DIN connection on the other, all in one straight piece with no adapters stacked in between.

Answer by: Customer Support on Aug 2, 2025, 6:56 AM
