Mjic X Male Din 2353L (Sealed) 9605S-12-L15-22

Specifications

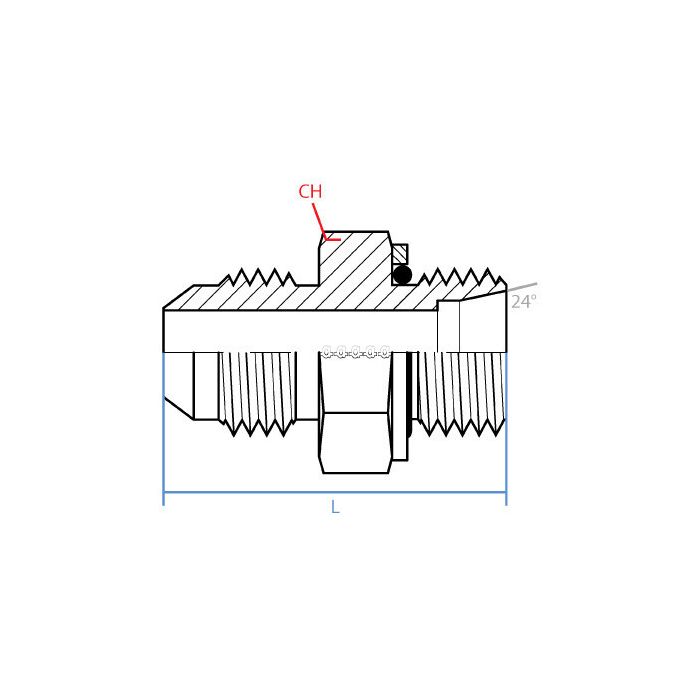

CH Width 30mm	L Length 47mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout 1-1/16 - 12 UN	Side 1 Gender M	Side 1 Size 3/4"	Side 1 Type Jic	Side 2 Callout M22 X 1.5	Side 2 Gender M	Side 2 Size L15	Side 2 Type Din Tube	Alternate Part Numbers Alternate Part Number MI-05086228, Alternate Part Number MINO-03671X00091	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9605S-12-L15-22	Product Weight 0.26 lbs

Product Questions & Answers 3

Product Questions & Answers

What size is the JIC end on this fitting?

Question by: Bonnie W on May 28, 2025, 6:30 PM

The JIC side of this Adaptall fitting is a 3/4" Male JIC, designed to fit a 1-1/16 - 12 UN thread.

Answer by: Customer Support on May 30, 2025, 6:35 AM

Got a 3/4 JIC male end on my hydraulic line and need to tie into a metric DIN fitting on the other side, this the right adapter for that?

Question by: Earl E on Apr 18, 2025, 1:08 PM

That's what this one's built for. Side 1 is a 3/4" Male JIC with a 1-1/16 - 12 UN thread, and Side 2 is a Male DIN tube connection, L15 size, M22 x 1.5 thread, meeting the DIN 2353L standard. Straight configuration, so there's no angle to account for. If your line ends are already in those sizes, this adapter bridges them directly without needing any extra sealant on the threads.

Answer by: Customer Support on Apr 20, 2025, 6:21 AM

trying to match up a fitting here, is this the one that goes from 3/4 MJIC to M22 x 1.5 DIN 2353L L15?

Question by: Ricky E on Mar 14, 2026, 8:22 PM

For fitment, it is a straight steel adapter with a 1-1/16 - 12 UN male JIC end (3/4 MJIC) on Side 1 and an M22 x 1.5 male DIN tube end for L15 per DIN 2353L on Side 2.

Answer by: Customer Support on Mar 15, 2026, 8:26 PM
