Mjic X Male Din 2353L (Sealed) 9605S-10-L18-26

Specifications

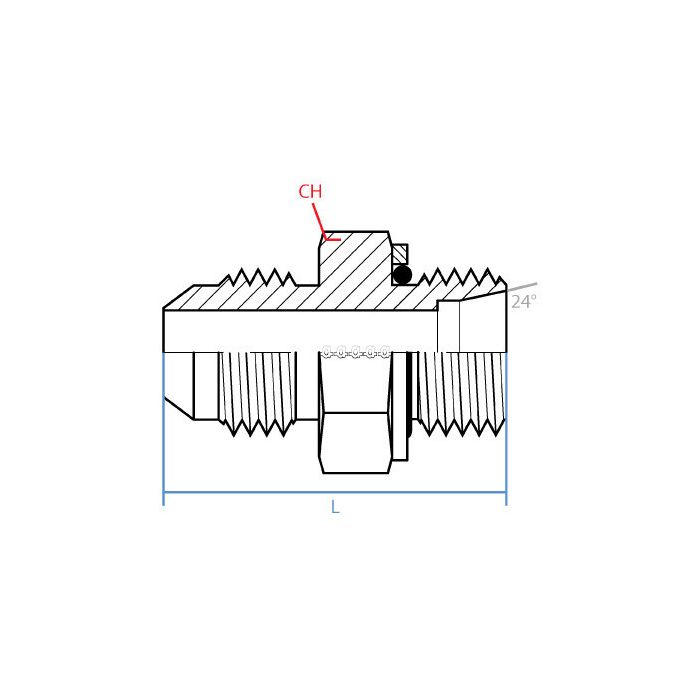

CH Width 32mm	L Length 48.2mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout 7/8 - 14 UNF	Side 1 Gender M	Side 1 Size 5/8"	Side 1 Type Jic	Side 2 Callout M26 X 1.5	Side 2 Gender M	Side 2 Size L18	Side 2 Type Din Tube	Alternate Part Numbers Alternate Part Number MI-07339218, Alternate Part Number MINO-03671X46153	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9605S-10-L18-26	Product Weight 0.25 lbs

Product Questions & Answers 2

Product Questions & Answers

What thread types are on each end of this fitting, and how long is it overall?

Question by: Harvey W on Nov 16, 2025, 7:23 PM

One end runs a 7/8-14 UNF male JIC thread, sized for a 5/8 inch connection. The other end is an M26 x 1.5 male DIN tube fitting, rated as an L18 size per the DIN 2353L standard. Overall length comes in at 48.2mm, with a 32mm width across the fitting body. Both ends are male, so keep that in mind when planning your connections.

Answer by: Customer Support on Nov 18, 2025, 6:12 AM

got a hose end that’s 7/8-14 JIC male, will this screw right onto it and give me an M26x1.5 DIN L18 male on the other side?

Question by: Billy A on Sep 15, 2025, 11:06 AM

On the JIC side, it is a 7/8-14 UNF male thread (JIC #10, 5/8 inch size). The other end is a male DIN 2353 L fitting with an M26 x 1.5 thread for tube size L18, so it is set up to adapt between those two male ends.

Answer by: Customer Support on Sep 17, 2025, 10:20 AM
