Mjic X Male Din 2353L (Sealed) 9605S-10-L15-22

Specifications

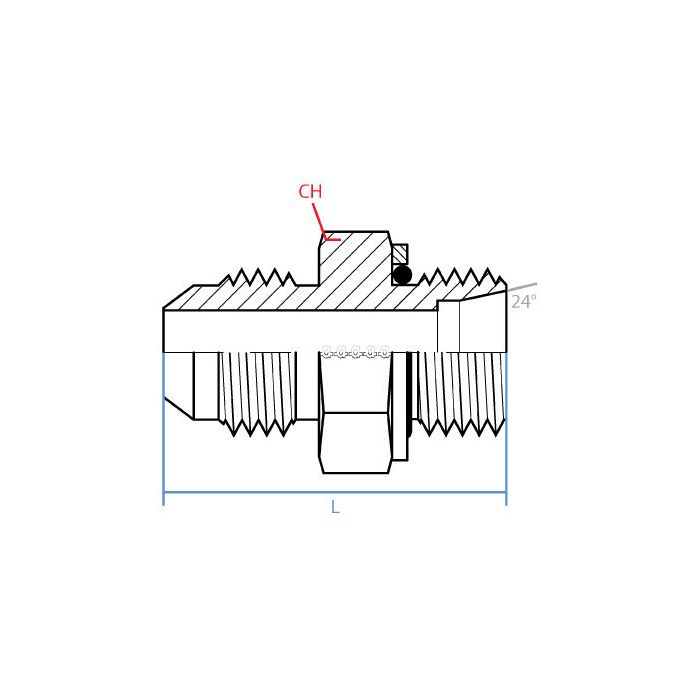

CH Width 27mm	L Length 42.9mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout 7/8 - 14 UNF	Side 1 Gender M	Side 1 Size 5/8"	Side 1 Type Jic	Side 2 Callout M22 X 1.5	Side 2 Gender M	Side 2 Size L15	Side 2 Type Din Tube	Alternate Part Numbers Alternate Part Number 9605-10-L15-22, Alternate Part Number MI-04246997, Alternate Part Number MINO-03671X61455	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9605S-10-L15-22	Product Weight 0.22 lbs

Product Questions & Answers 3

Product Questions & Answers

trying to swap out an old fitting, how do i know if this one matches my threads?

Question by: Phil H on Jul 5, 2025, 2:42 PM

Start by matching the two ends: side 1 is a male JIC thread with a 7/8 - 14 UNF callout and a 5/8 inch size, and side 2 is a male DIN tube connection called out as M22 x 1.5 with an L15 size. If your existing part uses those same callouts on each end, this is the same style of straight connector.

Answer by: Customer Support on Jul 6, 2025, 7:24 PM

trying to figure out if this'll work as a straight adapter between a JIC fitting and a DIN tube connection, am I reading that right?

Question by: Tommy H on Nov 15, 2025, 1:36 PM

Yeah, that's exactly what it does. One end is a 7/8-14 UNF male JIC, the other is an M22 x 1.5 male DIN 2353L tube connection in size L15. Both ends are male, so you'd be threading this into female receivers on each side. Steel construction, straight profile, no swivel or adjustability built in. Pretty much a direct bridge between those two thread standards.

Answer by: Customer Support on Nov 16, 2025, 5:47 PM

Will this here fitting work alright for connecting a JIC fitting to a DIN tube?

Question by: Janice G on Sep 4, 2025, 5:28 PM

This Adaptall fitting is indeed designed to connect a male JIC fitting to a male DIN tube connection. Just make sure your sizes match up: 5/8" JIC to L15 DIN.

Answer by: Customer Support on Sep 5, 2025, 9:36 PM
