Mjic X Male Din 2353L (Sealed) 9605S-08-L15-22

Specifications

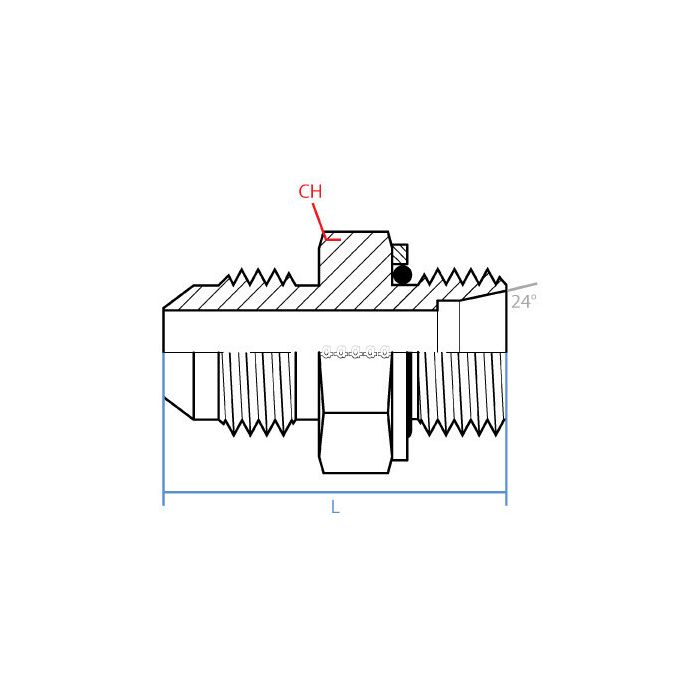

CH Width 27mm	L Length 41.9mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout 3/4 - 16 UNF	Side 1 Gender M	Side 1 Size 1/2"	Side 1 Type Jic	Side 2 Callout M22 X 1.5	Side 2 Gender M	Side 2 Size L15	Side 2 Type Din Tube	Alternate Part Numbers Alternate Part Number MI-07339217, Alternate Part Number MINO-03671X45748	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9605S-08-L15-22	Product Weight 0.25 lbs

Product Questions & Answers 2

Product Questions & Answers

what's the thread setup on both ends of this fitting? trying to figure out if it'll work between my JIC line and a metric DIN connection

Question by: Travis E on Dec 2, 2025, 2:59 PM

One end runs a 3/4-16 UNF thread, which is your standard JIC male side sized at 1/2 inch. The other end is M22 x 1.5 metric thread, fitting an L15 DIN tube connection. So yeah, this one bridges a male JIC side to a male DIN 2353L side, straight through, no bends.

Answer by: Customer Support on Dec 3, 2025, 8:18 PM

got a hose end that’s 3/4-16 UNF JIC on one side and a metric DIN tube on the other. is this the straight adapter for that?

Question by: Kent B on Jan 21, 2026, 2:06 PM

For a straight JIC to DIN tube hookup, this fitting matches 3/4-16 UNF male JIC on side 1 and M22 x 1.5 male DIN 2353L on side 2. The DIN tube size callout on it is L15, so it is meant to interface with that DIN light series tube connection.

Answer by: Customer Support on Jan 23, 2026, 11:39 AM
