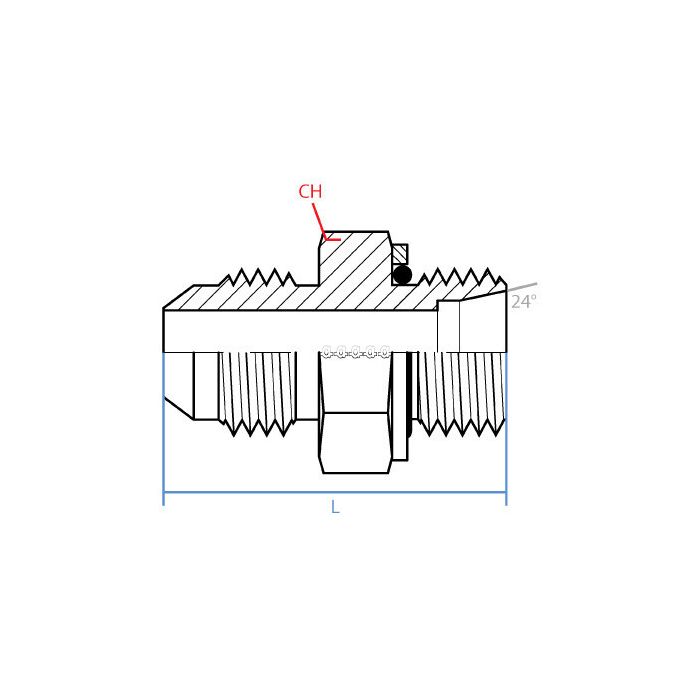

Mjic X Male Din 2353L (Sealed) 9605S-06-L12-18

Specifications

CH Width 24mm	L Length 37.5mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout 9/16 - 18 UNF	Side 1 Gender M	Side 1 Size 3/8"	Side 1 Type Jic	Side 2 Callout M18 X 1.5	Side 2 Gender M	Side 2 Size L12	Side 2 Type Din Tube	Alternate Part Numbers Alternate Part Number MI-07339216, Alternate Part Number MINO-03671X45855	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9605S-06-L12-18	Product Weight 0.25 lbs

Product Questions & Answers 3

Product Questions & Answers

Will this fitting hold up if it's used with hydraulic fluid on a regular basis?

Question by: Terry H on Nov 24, 2025, 7:47 AM

This steel fitting is designed for long-lasting performance in industrial settings, so it should handle hydraulic fluid exposure well.

Answer by: Customer Support on Nov 26, 2025, 6:44 AM

Got a metric DIN tube connection on one end and a JIC fitting on the other side of my line, is this the adapter that bridges those two?

Question by: Clint B on Jun 27, 2025, 12:32 PM

That's what this one does. Side 1 is a 3/8" JIC male with a 9/16-18 UNF thread, and Side 2 is a male DIN 2353L metric tube connection sized at L12 with an M18 x 1.5 thread. So if you're tying a JIC line into a metric DIN port, this adapter handles that transition straight out of the box with no additional sealant or check valve needed.

Answer by: Customer Support on Jun 28, 2025, 9:29 PM

trying to swap a metric line over to JIC, is this the one with 9/16-18 on one end and M18x1.5 on the other?

Question by: Neal H on Dec 14, 2025, 12:28 PM

For a metric to 37 degree flare hookup, it matches that combo: Side 1 is a male JIC with 9/16-18 UNF threads (3/8 size), and Side 2 is a male DIN 2353L tube end with M18 x 1.5 threads (L12).

Answer by: Customer Support on Dec 15, 2025, 4:28 PM
