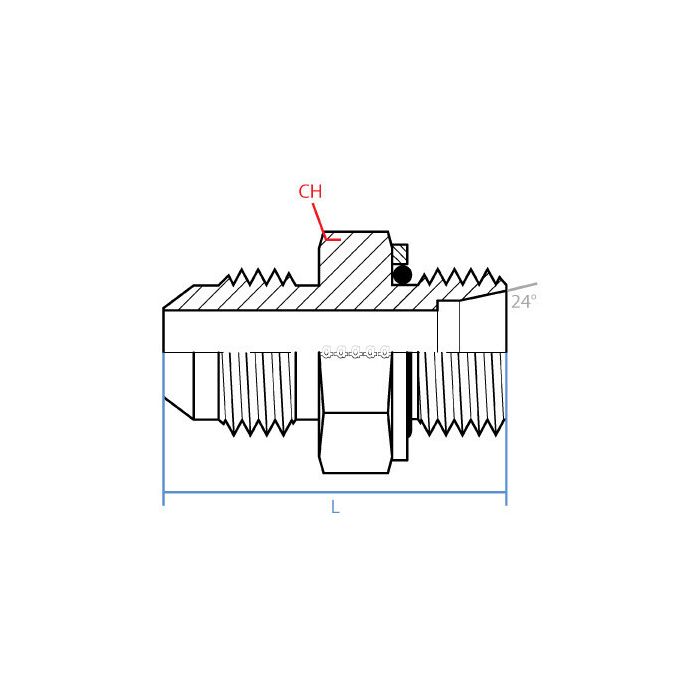

Mjic X Male Din 2353L (Sealed) 9605S-04-LL08-12

Specifications

CH Width 17mm	L Length 32.5mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout 7/16 - 20 UNF	Side 1 Gender M	Side 1 Size 1/4"	Side 1 Type Jic	Side 2 Callout M12 X 1.0	Side 2 Gender M	Side 2 Size LL08	Side 2 Type Din Tube	Alternate Part Numbers Alternate Part Number FMC102-1823, Alternate Part Number MI-05588326, Alternate Part Number MINO-03671X00138	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9605S-04-LL08-12	Product Weight 0.25 lbs

Product Questions & Answers 2

Product Questions & Answers

got a line running M12 x 1.0 metric DIN tube on one end and need to tie into a JIC fitting on the other, this the right adapter for that?

Question by: Gary F on Jan 3, 2026, 7:34 AM

That's what this one's built for. One side is a male JIC with a 7/16-20 UNF thread at 1/4" size, and the other side is a male DIN tube connection running M12 x 1.0 in LL08 size. Steel construction, straight body, no adjustability. If both your existing fittings match those specs, this drops right in.

Answer by: Customer Support on Jan 4, 2026, 3:49 PM

trying to swap out a fitting, is this one the straight MJIC 1/4 to metric DIN tube deal with the M12 x 1.0 threads?

Question by: Todd R on Nov 24, 2025, 8:29 PM

It matches a male JIC end with 7/16-20 UNF threads in a 1/4 inch size on one side, and a male DIN 2353L tube end with M12 x 1.0 threads in LL08 size on the other. It is a straight steel connector.

Answer by: Customer Support on Nov 26, 2025, 3:55 PM
