Mjic X Male Din 2353L (Sealed) 9605S-04-LL06-10

Specifications

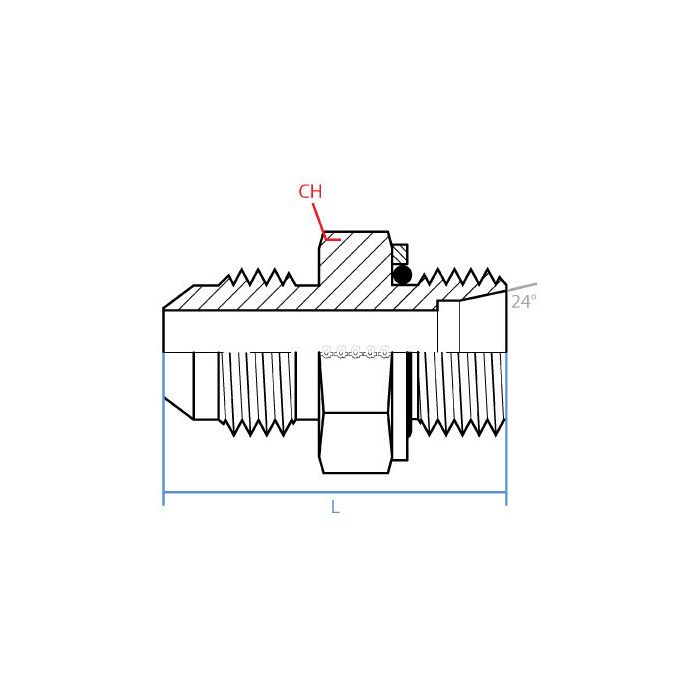

CH Width 16mm	L Length 29.8mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout 7/16 - 20 UNF	Side 1 Gender M	Side 1 Size 1/4"	Side 1 Type Jic	Side 2 Callout M10 X 1.0	Side 2 Gender M	Side 2 Size LL06	Side 2 Type Din Tube	Alternate Part Numbers Alternate Part Number MI-08022605, Alternate Part Number MINO-03671X00413	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9605S-04-LL06-10	Product Weight 0.03 lbs

Product Questions & Answers 3

Product Questions & Answers

what's the thread size on each end of this fitting? trying to figure out if it'll work between a JIC line and a DIN metric connection on a hydraulic block.

Question by: Dustin J on Mar 4, 2026, 7:13 AM

One end is a 7/16-20 UNF male JIC, which corresponds to a 1/4" JIC line. The other end is an M10 x 1.0 male DIN tube fitting, sized at LL06. So yes, it bridges a standard inch-based JIC connection to a metric DIN 2353L tube port. Steel construction, straight configuration, 29.8mm in length with a 16mm wrench width.

Answer by: Customer Support on Mar 5, 2026, 2:46 PM

What kind of steel is this fitting made from?

Question by: Hubert E on Feb 24, 2026, 6:55 AM

Constructed from durable steel, this fitting is designed for demanding environments where precision and durability are critical.

Answer by: Customer Support on Feb 25, 2026, 6:09 PM

got a hose end that’s 7/16-20 JIC male, will this straight fitting mate up to it and still give me a male DIN on the other side?

Question by: Larry M on Dec 31, 2025, 12:11 PM

On the JIC side you are getting a 7/16-20 UNF male (1/4 inch) connection, and the opposite end is an M10 x 1.0 male DIN 2353L tube connection. It is a straight steel adapter and the sealed design is meant to help prevent leakage at the connection.

Answer by: Customer Support on Jan 2, 2026, 11:50 AM
