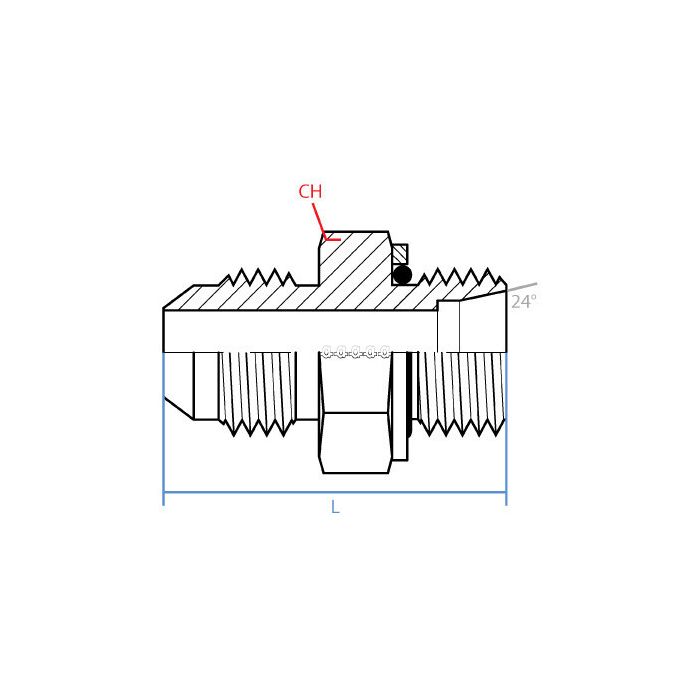

Mjic X Male Din 2353L (Sealed)

CH Width
19mm
L Length
33.3mm
Adaptall Material
Steel
Adaptall Shape
Straight
Side 1 Callout
7/16 - 20 UNF
Side 1 Gender
M
Side 1 Size
1/4"
Side 1 Type
Jic
Side 2 Callout
M14 X 1.5
Side 2 Gender
M
Side 2 Size
L08
Side 2 Type
Din Tube
Alternate Part Numbers
Alternate Part Number MI-04744999, Alternate Part Number MINO-03671X00045
Brand
Adaptall America
Brand
Adaptall
Pack Size
1.00
UOM
EA
Supplier Part Number
9605S-04-L08-14
Product Weight
0.07 lbs

Product Questions & Answers

got a metric tube line running M14 x 1.5 and need to tie into a 7/16-20 JIC port, this the right adapter for that?
Question by: Sheila G on May 8, 2025, 12:01 PM
That's what this one's built for. One end is a JIC male at 7/16-20 UNF and the other is a DIN tube male at M14 x 1.5, so it bridges that metric-to-37-flare connection without any extra hardware. It's a straight adapter, steel construction, and the DIN side carries the 2353L sealed designation, so you're not relying on thread sealant to keep things tight. At 33.3mm long and 19mm across the wrench flats, it's compact enough to fit in tighter hydraulic connections runs without much fuss.
Answer by: Customer Support on May 9, 2025, 12:57 PM
Will this fitting hold up if I'm using it for hydraulics on a log splitter?
Question by: Billy B on Mar 23, 2026, 1:06 PM
Designed for secure connections in industrial applications, this Adaptall fitting is made from steel, so it should be durable enough for log splitter hydraulics, assuming the pressure and fluid are compatible with steel.
Answer by: Customer Support on Mar 25, 2026, 8:52 AM
