Mjic X Male Din 2353L (Sealed)

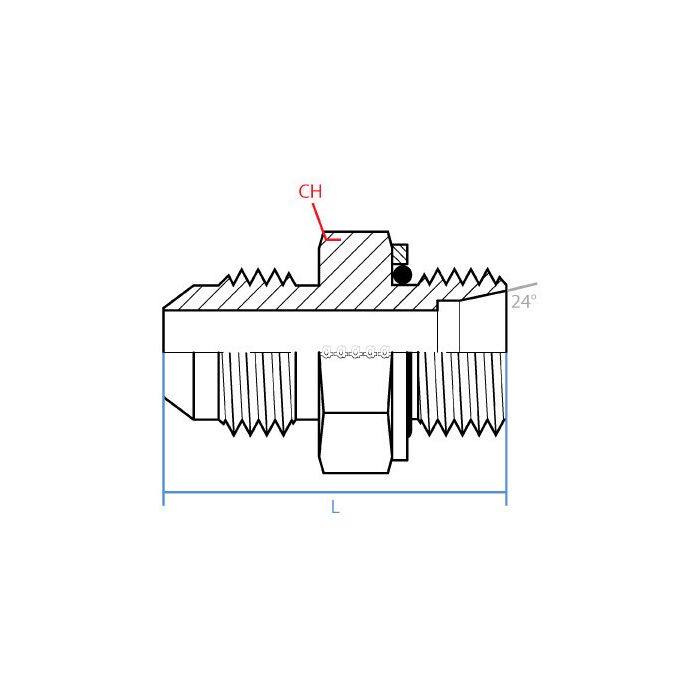

CH Width 17mm	L Length 31.9mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout 7/16 - 20 UNF	Side 1 Gender M	Side 1 Size 1/4"	Side 1 Type Jic	Side 2 Callout M12 X 1.5	Side 2 Gender M	Side 2 Size L06	Side 2 Type Din Tube	Alternate Part Numbers Alternate Part Number MI-07339212, Alternate Part Number MINO-03671X45815	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9605S-04-L06-12	Product Weight 0.25 lbs

Product Questions & Answers 2

Product Questions & Answers

What size wrench do I need for this fitting?

Question by: Wes H on Sep 19, 2025, 9:47 AM

You'll need a 17mm wrench for the flats on this fitting.

Answer by: Customer Support on Sep 21, 2025, 6:23 AM

got a hose end with 7/16-20 jic, will this screw right into it and still give me a metric din 2353L male on the other side?

Question by: Lyle P on Oct 28, 2025, 3:07 PM

For tying a JIC flare connection into a metric DIN tube setup, this fitting matches up as a straight adapter with a 7/16-20 UNF male JIC on Side 1 and an M12 x 1.5 male DIN 2353L (L06) on Side 2.

Answer by: Customer Support on Oct 29, 2025, 7:39 PM
