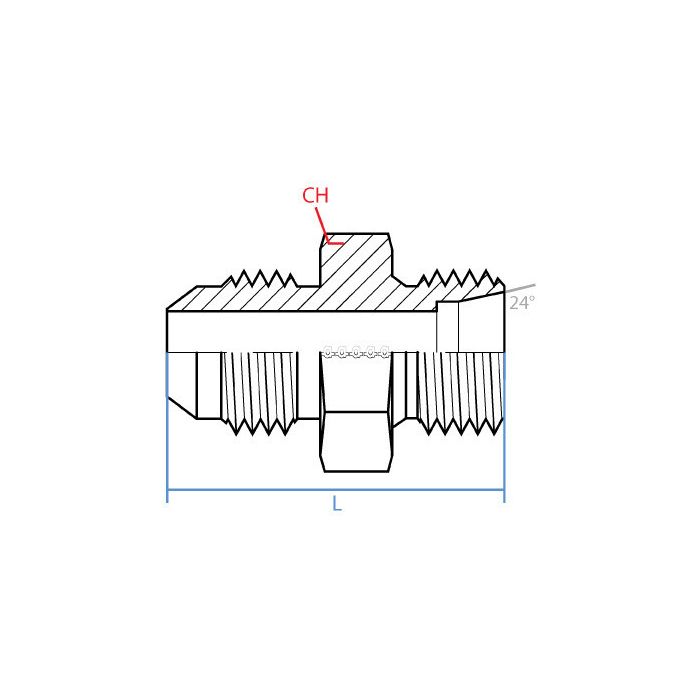

Mjic X Male Din 2353 L

CH Width 38mm	L Length 55.4mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout 1-1/16 - 12 UN	Side 1 Gender M	Side 1 Size 3/4"	Side 1 Type Jic	Side 2 Callout M30 X 2.0	Side 2 Gender M	Side 2 Size L22	Side 2 Type Din Tube	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9605-12-L22-30	Product Weight 0.45 lbs

Product Questions & Answers 1

Product Questions & Answers

Got a hydraulic line running M30 x 2.0 DIN tube on one end and need to tie into a JIC fitting on the other side, this the right adapter for that?

Question by: Melvin H on Jun 7, 2025, 12:51 PM

Yeah, that's exactly what this fitting is built for. One side gives you a 1-1/16-12 UN JIC male thread, which covers the 3/4" JIC side of your connection, and the other side is a male DIN tube end at M30 x 2.0, sized at L22. Straight body, no bends or offsets, so it drops right in where you need a clean inline transition between those two standards.

Answer by: Customer Support on Jun 9, 2025, 10:13 AM
