Mjic X Male Din 2353 L 9605-10-L12-18

Specifications

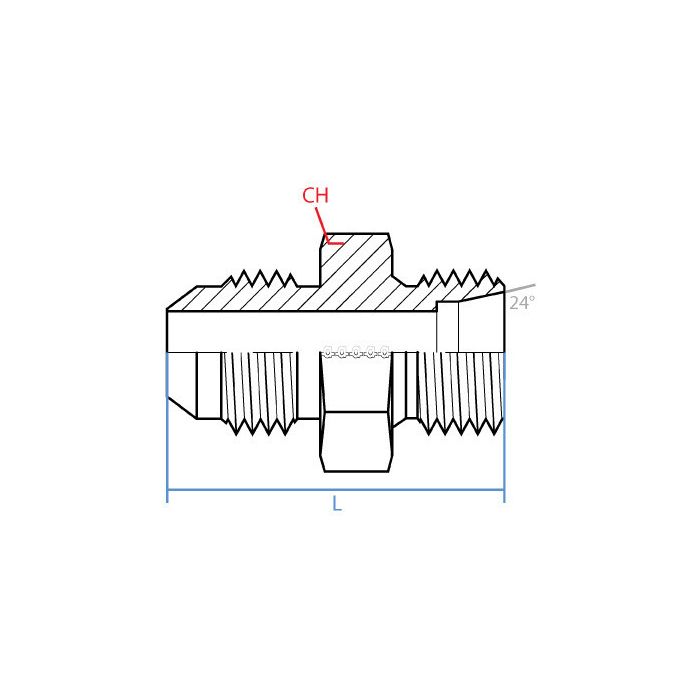

CH Width 24mm	L Length 43mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout 7/8 - 14 UNF	Side 1 Gender M	Side 1 Size 5/8"	Side 1 Type Jic	Side 2 Callout M18 X 1.5	Side 2 Gender M	Side 2 Size L12	Side 2 Type Din Tube	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9605-10-L12-18	Product Weight 0.20 lbs

Product Questions & Answers 2

Product Questions & Answers

Got a line coming off a JIC fitting that I need to tie into a metric DIN tube setup, this the kind of adapter that bridges that gap?

Question by: Connie T on Jun 24, 2025, 7:46 PM

That's what this one does. One end is a 5/8" JIC male with a 7/8-14 UNF thread, and the other end is an M18 x 1.5 DIN 2353 L-series male tube fitting sized for 18mm OD tube. Straight body, no angle, so your routing stays clean and direct. It's made by Adaptall in steel, and the 24mm wrench flat means you can torque it down with standard tooling without any trouble.

Answer by: Customer Support on Jun 26, 2025, 8:44 AM

Will this here fitting work to hook up a JIC line to something with a DIN port? Gotta plumb up a new hydraulic circuit on the farm.

Question by: Wayne H on Oct 3, 2025, 10:24 AM

This straight adapter is indeed designed to connect a 5/8" JIC male fitting to an M18 x 1.5 DIN 2353 L-series male tube fitting. It's made for situations where you need to join JIC and metric DIN tube connections in hydraulic systems.

Answer by: Customer Support on Oct 5, 2025, 10:00 AM
