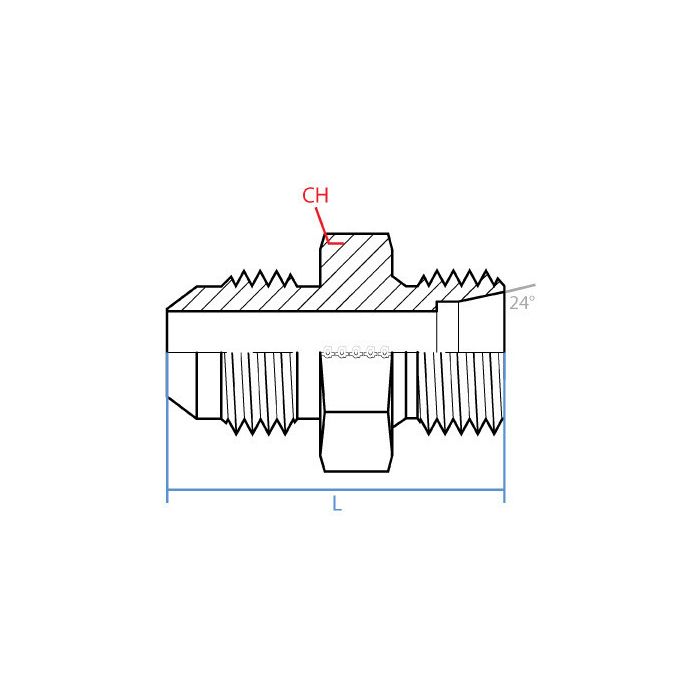

Mjic X Male Metric Port Only

CH Width 13mm	L Length 27.7mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout 7/16 - 20 UNF	Side 1 Gender M	Side 1 Size 1/4"	Side 1 Type Jic	Side 2 Callout M8 X 1.25	Side 2 Gender M	Side 2 Size 8X1.25	Side 2 Type Metric	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9605-04-08X1.25	Product Weight 0.05 lbs

Product Questions & Answers 2

Product Questions & Answers

fitting's got a 7/16-20 JIC on one end -- what's the thread spec on the other side?

Question by: Warren H on May 20, 2025, 8:46 PM

The opposite end is an M8 x 1.25 male metric port. So you've got a standard JIC male on one side and a metric male thread on the other, both in a straight configuration. That's the whole purpose of this adapter, bridging those two thread types in a single compact piece.

Answer by: Customer Support on May 22, 2025, 12:36 PM

trying to swap a line over, is this the adapter with 7/16-20 JIC male on one end and an M8 x 1.25 male metric port on the other?

Question by: Norm H on Sep 22, 2025, 9:13 AM

For fit checks, match the ends to the callouts: side 1 is a male JIC, 7/16 - 20 UNF thread with a 1/4 inch size, and side 2 is a male metric port, M8 x 1.25 (8x1.25).

Answer by: Customer Support on Sep 24, 2025, 8:47 AM
