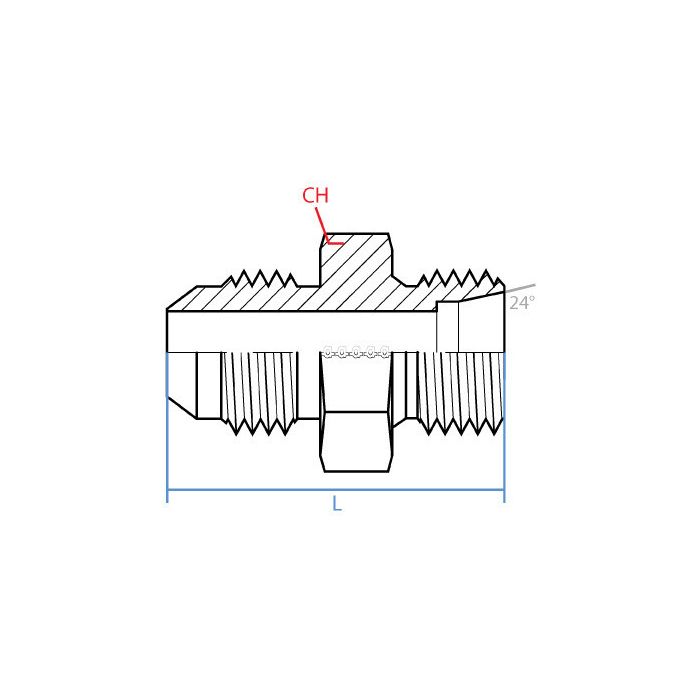

Mjic X Male Metric Port Only

CH Width 13mm	L Length 27.4mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout 7/16 - 20 UNF	Side 1 Gender M	Side 1 Size 1/4"	Side 1 Type Jic	Side 2 Callout M8 X 1.0	Side 2 Gender M	Side 2 Size 8mm	Side 2 Type Metric	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9605-04-08X1.0	Product Weight 0.05 lbs

Product Questions & Answers 1

Product Questions & Answers

got a piece of equipment with an M8 x 1.0 port on it and need to tie into a JIC line, this the right adapter for that?

Question by: Daryl S on Mar 16, 2026, 2:50 PM

That's what this one's built for. One end is a 1/4" male JIC with a 7/16-20 UNF thread, and the other end is a male M8 x 1.0 metric port. Both sides are male, so it goes straight from port to port without needing anything else in between. Steel construction, straight profile, and it comes in at just under 28mm long, so it keeps things pretty tight and clean wherever you're fitting it.

Answer by: Customer Support on Mar 17, 2026, 5:23 PM
