Adaptall 90* Din X Male Metric Adj 5069S-16-22

Specifications

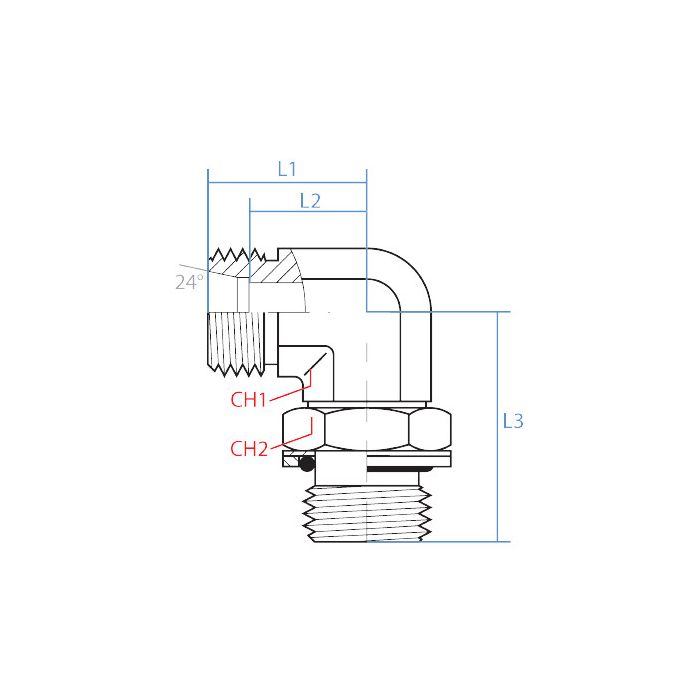

CH1 Width 27mm	CH2 Width 27mm	L1 Length 33mm	L2 Length 24.5mm	L3 Length 47mm	Adaptall Material Steel	Adaptall Shape 90° Elbow	Side 1 Callout M24 X 1.5	Side 1 Gender M	Side 1 Size S16	Side 1 Type Din Tube	Side 2 Callout M22 X 1.5	Side 2 Gender M	Side 2 Size 22mm	Side 2 Type Metric	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 5069S-16-22	Product Weight 0.52 lbs

Product Questions & Answers 3

Product Questions & Answers

what's the thread size on both ends of this fitting? got one side going to M22 and need to make sure the other end lines up right before I order

Question by: Sheila K on Feb 10, 2026, 7:26 PM

Side 1 runs an M24 x 1.5 thread with a DIN Tube connection at size S16. Side 2 is your M22 x 1.5 Metric male connection. Both ends are male, so keep that in mind when matching up your existing ports or adapters.

Answer by: Customer Support on Feb 12, 2026, 6:47 AM

What size wrench do I need for this thing? Looks like a tight fit.

Question by: Johnny R on Jun 13, 2025, 10:21 AM

You'll need a 27mm wrench for both sides of this elbow fitting. Adaptall lists them as Ch1 and Ch2 widths, so it's the same on either end.

Answer by: Customer Support on Jun 14, 2025, 5:48 PM

trying to replace an elbow on my hydraulic line. are the ends on this one M24 x 1.5 on the DIN tube side and M22 x 1.5 on the other?

Question by: Denise M on Jan 17, 2026, 9:03 PM

Fit-wise, Side 1 is a DIN Tube connection with a male M24 x 1.5 thread in size S16, and Side 2 is a male metric connection with an M22 x 1.5 thread (22 mm size).

Answer by: Customer Support on Jan 19, 2026, 6:50 AM
