Female Jic Swivel Tee

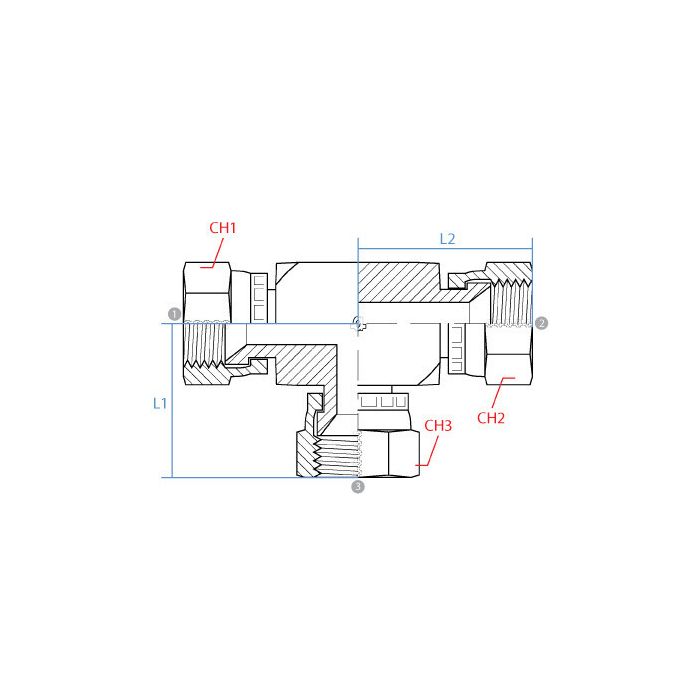

CH1 Width 37mm	CH2 Width 38mm	L1 Length 58	L2 Length 59mm	Adaptall Material Steel	Adaptall Shape Tee	Side 1 Callout 1-5/16 - 12 UN	Side 1 Gender F	Side 1 Size 1"	Side 1 Type Jic	Side 2 Callout 1-5/16 - 12 UN	Side 2 Gender F	Side 2 Size 1"	Side 2 Type Jic	Side 3 Callout 1-5/16 - 12 UN	Side 3 Gender F	Side 3 Size 1"	Side 3 Type JIC	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9555-16-16-16	Product Weight 1.20 lbs

Product Questions & Answers 1

Product Questions & Answers

All three ports on this thing are the same size and thread, right? Just wanna make sure before I order, got a line splittin' off into two outlets and need 'em all to match up.

Question by: Floyd D on Nov 19, 2025, 6:10 AM

All three ports are identical. Each one is threaded at 1-5/16-12 UN and sized for 1-inch JIC lines, so you're working with the same spec across the board. That makes it a straightforward fit for a single-line branch-off into two outlets of the same type and size.

Answer by: Customer Support on Nov 21, 2025, 8:11 AM
