Adaptall 90* Din X Male Metric Adj 5069S-14-20

Specifications

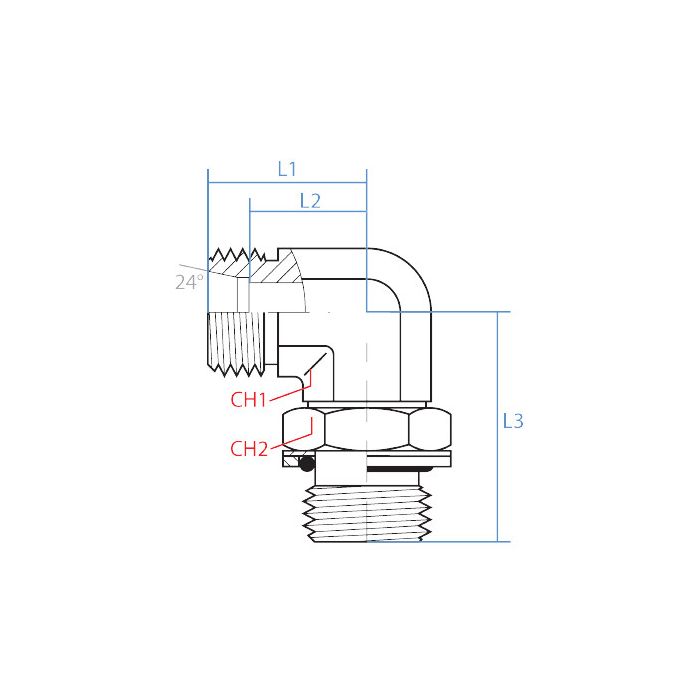

CH1 Width 22mm	CH2 Width 24mm	L1 Length 30mm	L2 Length 22mm	L3 Length 44mm	Adaptall Material Steel	Adaptall Shape 90° Elbow	Side 1 Callout M22 X 1.5	Side 1 Gender M	Side 1 Size S14	Side 1 Type Din Tube	Side 2 Callout M20 X 1.5	Side 2 Gender M	Side 2 Size 20mm	Side 2 Type Metric	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 5069S-14-20	Product Weight 0.32 lbs

Product Questions & Answers 2

Product Questions & Answers

trying to swap an elbow out, what thread sizes are on each end of this one?

Question by: Dale B on Sep 15, 2025, 5:46 PM

On the DIN tube end you have an M22 x 1.5 male thread, called out as S14. The other side is a male metric M20 x 1.5 thread.

Answer by: Customer Support on Sep 17, 2025, 6:58 AM

Got a tight routing situation on a skid steer and need to make a 90 on the DIN side while still being able to clock the fitting after it's snugged up, this one adjustable or fixed once you torque it down?

Question by: Hubert S on Feb 22, 2026, 7:34 PM

Adjustable. That's the whole point of the Adaptall design on this fitting. You set the elbow orientation during installation before final torque, so you can clock it to clear hoses, brackets, or whatever's in the way. Once you've got the angle dialed in, you tighten it down and it holds position. That kind of flexibility matters a lot when you're working around fixed port locations on components that don't give you much wiggle room.

Answer by: Customer Support on Feb 24, 2026, 3:07 PM
