90*Male X F.Komatsu (Moq-200) 9392-33-33

Specifications

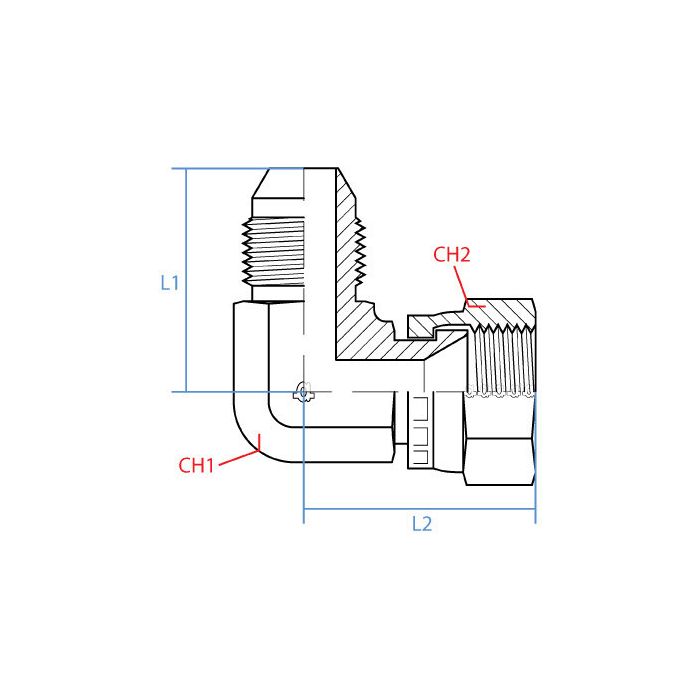

CH1 Width 33mm	CH2 Width 41mm	L1 Length 45mm	L2 Length 50mm	Adaptall Material Steel	Adaptall Shape 90° Elbow	Side 1 Callout M33 X 1.5	Side 1 Gender M	Side 1 Size 33mm	Side 1 Type Komatsu	Side 2 Callout M33 X 1.5	Side 2 Gender F	Side 2 Size 33mm	Side 2 Type Komatsu	Alternate Part Numbers Alternate Part Number C1FN33	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9392-33-33	Product Weight 0.95 lbs

Product Questions & Answers 3

Product Questions & Answers

Both sides are M33 x 1.5 on this one, right? Just want to make sure I ain't mixing up a male-to-female situation when I go to swap out the old fitting on the Komatsu line.

Question by: Brent H on May 22, 2025, 11:21 AM

Both sides do run M33 x 1.5, but they're not the same gender. One end is male and the other is female, so it's set up to extend or redirect an existing Komatsu connection rather than join two identical ends. If your current setup has a female M33 x 1.5 port, the male side threads right in, and the female end accepts the next male fitting in the line.

Answer by: Customer Support on May 24, 2025, 6:21 AM

got a tight spot on a Komatsu line, is this the 90 degree elbow with M33 x 1.5 on both ends?

Question by: Rick H on Apr 22, 2025, 10:54 AM

For a Komatsu-style 90° turn, this elbow is set up with an M33 x 1.5 male on one side and an M33 x 1.5 female on the other, so it’s meant to join two M33 x 1.5 Komatsu connections at a right angle.

Answer by: Customer Support on Apr 23, 2025, 9:13 PM

Will this fitting work with standard Komatsu hydraulic lines, or is it specific to certain models? Just want to make sure before I order.

Question by: Rick M on Oct 15, 2025, 7:06 PM

This elbow fitting is designed to connect specifically to Komatsu components with M33 x 1.5 connections on both ends.

Answer by: Customer Support on Oct 16, 2025, 8:23 PM
