90* Male X Female Komatsu

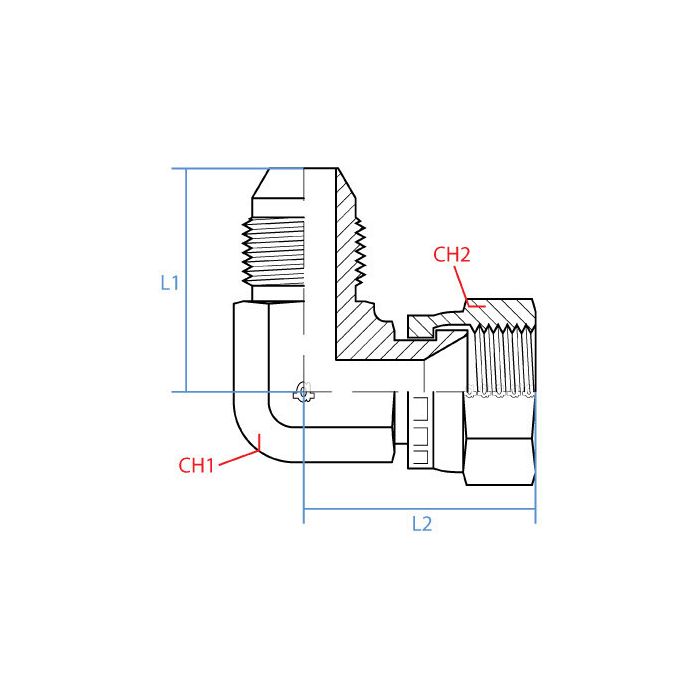

CH1 Width 19mm	CH2 Width 22mm	L1 Length 28mm	L2 Length 32mm	Adaptall Material Steel	Adaptall Shape 90° Elbow	Side 1 Callout M16 X 1.5	Side 1 Gender M	Side 1 Size 16mm	Side 1 Type Komatsu	Side 2 Callout M16 X 1.5	Side 2 Gender F	Side 2 Size 16mm	Side 2 Type Komatsu	Alternate Part Numbers Alternate Part Number C1GH78	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9392-16-16	Product Weight 0.25 lbs

Product Questions & Answers 2

Product Questions & Answers

trying to swap out an elbow on a Komatsu line, are both ends on this one M16 x 1.5 and is it male to female?

Question by: Rhonda M on Feb 25, 2026, 8:23 PM

Both ports are Komatsu thread form at M16 x 1.5. Side 1 is male and side 2 is female, so it replaces a same size male to female Komatsu elbow without changing thread size.

Answer by: Customer Support on Feb 27, 2026, 6:42 AM

Will this fitting work to make a 90-degree turn in a Komatsu hydraulic system?

Question by: Bonnie T on Oct 15, 2025, 9:25 AM

This 90-degree elbow adapter is designed specifically to connect two M16 x 1.5 Komatsu-thread ports, allowing for a right-angle transition in Komatsu equipment hydraulic circuits.

Answer by: Customer Support on Oct 16, 2025, 1:31 PM
