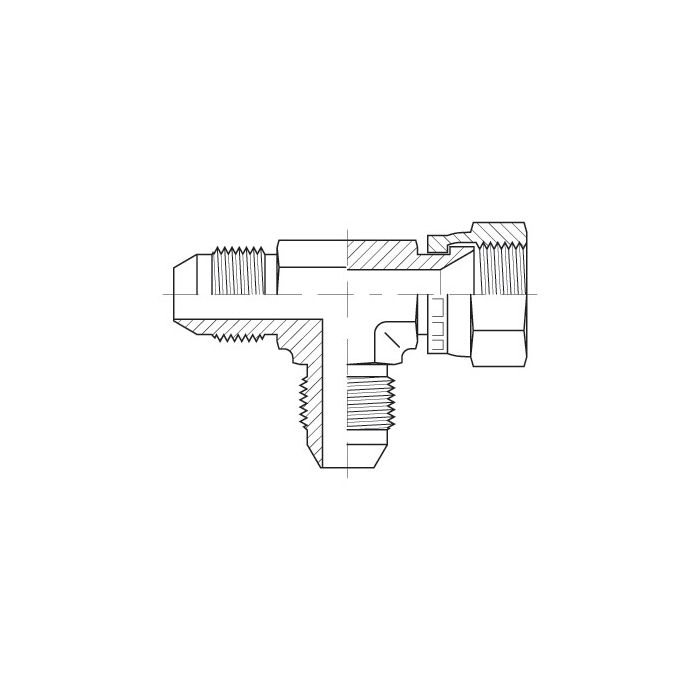

Female Komatsu Run Tee 9391-22-22-22

Specifications

CH1 Width 22mm	CH2 Width 27mm	L1 Length 34mm	L2 Length 37.5mm	Adaptall Material Steel	Adaptall Shape Tee	Side 1 Callout M22 X 1.5	Side 1 Gender M	Side 1 Size 22mm	Side 1 Type Komatsu	Side 2 Callout M22 X 1.5	Side 2 Gender M	Side 2 Size 22mm	Side 2 Type Komatsu	Side 3 Callout M22 X 1.5	Side 3 Gender F	Side 3 Size 22mm	Side 3 Type KOMATSU	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9391-22-22-22	Product Weight 0.45 lbs

Product Questions & Answers 2

Product Questions & Answers

got two male komatsu m22x1.5 lines already, will this tee let me add a third line with a female port on the branch?

Question by: Dwayne O on Dec 30, 2025, 12:15 PM

Built as a run tee, it keeps the flow path through Sides 1 and 2 with male Komatsu M22 x 1.5 ports, and Side 3 is a female Komatsu M22 x 1.5 branch. All three ports share the same M22 x 1.5 thread size and pitch, so it matches up with Komatsu-style connections at 22 mm on every leg.

Answer by: Customer Support on Jan 1, 2026, 6:17 AM

all three ports are M22 x 1.5 on this thing? run ports and the branch too?

Question by: Kirk J on Jun 5, 2025, 7:02 PM

all three connections run on M22 x 1.5 threading. The two run ports on Sides 1 and 2 are male Komatsu, and the branch port on Side 3 is female Komatsu, but the thread pitch and diameter are the same across the board. Makes for a pretty clean assembly when your whole system is already built around Komatsu-standard fittings.

Answer by: Customer Support on Jun 7, 2025, 10:03 AM
