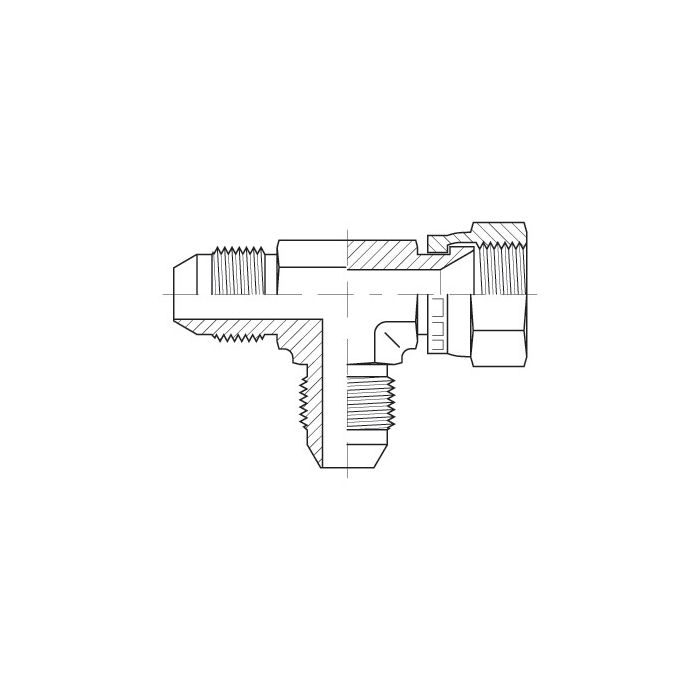

Female Komatsu Run Tee 9391-14-14-14

Specifications

CH1 Width 14mm	CH2 Width 19mm	L1 Length 24.5mm	L2 Length 28.5mm	Adaptall Material Steel	Adaptall Shape Tee	Side 1 Callout M14 X 1.5	Side 1 Gender M	Side 1 Size 14mm	Side 1 Type Komatsu	Side 2 Callout M14 X 1.5	Side 2 Gender M	Side 2 Size 14mm	Side 2 Type Komatsu	Side 3 Callout M14 X 1.5	Side 3 Gender F	Side 3 Size 14mm	Side 3 Type KOMATSU	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9391-14-14-14	Product Weight 0.20 lbs

Product Questions & Answers 3

Product Questions & Answers

all three ports on this thing are M14 x 1.5, that right? just want to make sure before I go swapping it in

Question by: Lyle P on Apr 27, 2025, 5:31 PM

all three are M14 x 1.5 threading with a 14mm size across the board. The two run ports on Sides 1 and 2 are male Komatsu, and the branch port on Side 3 is female Komatsu. Same thread spec throughout, so no mixing and matching to worry about on that front.

Answer by: Customer Support on Apr 28, 2025, 6:30 PM

Will this tee work with standard Komatsu fittings?

Question by: Howard O on Apr 17, 2025, 9:04 PM

Yes, this tee is designed to work with any hydraulic system using female Komatsu M14 x 1.5 fittings on the branch port, and male Komatsu M14 x 1.5 fittings on the run ports.

Answer by: Customer Support on Apr 19, 2025, 6:50 AM

trying to replace a tee on a Komatsu line, are all three ports M14 x 1.5 on this one?

Question by: Brenda C on Jan 23, 2026, 7:48 PM

All three sides are Komatsu M14 x 1.5 with a 14 mm size. Sides 1 and 2 are male, and the branch port on side 3 is female.

Answer by: Customer Support on Jan 24, 2026, 8:22 PM
