Male Jic X Male Jis

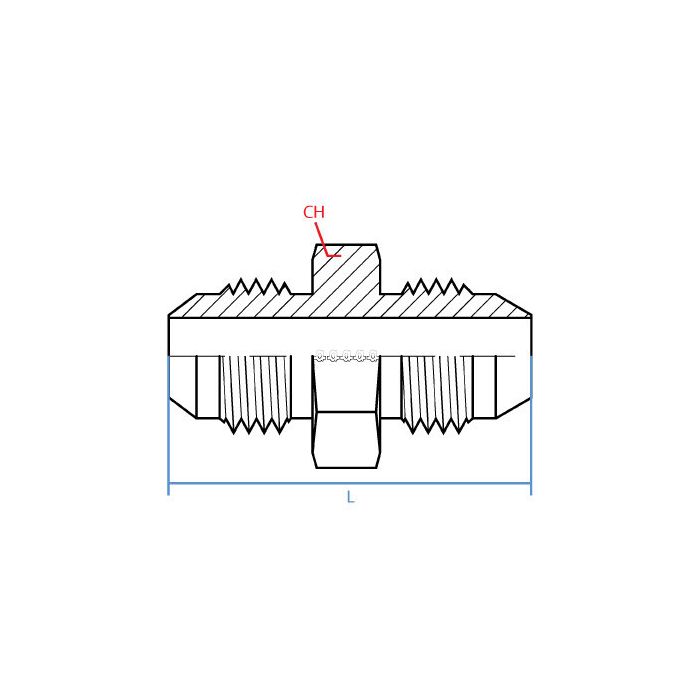

CH Width 32mm	L Length 64.6mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout 1-1/16 - 12 UN	Side 1 Gender M	Side 1 Size 3/4"	Side 1 Type Jic	Side 2 Callout G 3/4 - 14	Side 2 Gender M	Side 2 Size 3/4"	Side 2 Type Jis	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9337-12-12	Product Weight 0.40 lbs

Product Questions & Answers 1

Product Questions & Answers

Got a hydraulic line running JIC on one end and JIS on the other, this straight adapter the right call for tying those two together?

Question by: Clint P on May 6, 2025, 6:46 PM

That's what this fitting handles. One end is a 3/4" male JIC with a 1-1/16-12 UN thread, and the other is a 3/4" male JIS with a G 3/4-14 threading. Both sides are male, so you'd need female JIC and female JIS ports on your lines for it to seat up right. Steel construction, straight profile, no angles or offsets involved.

Answer by: Customer Support on May 8, 2025, 5:31 PM
