Male Jic X Male Jis 9337-06-06

Specifications

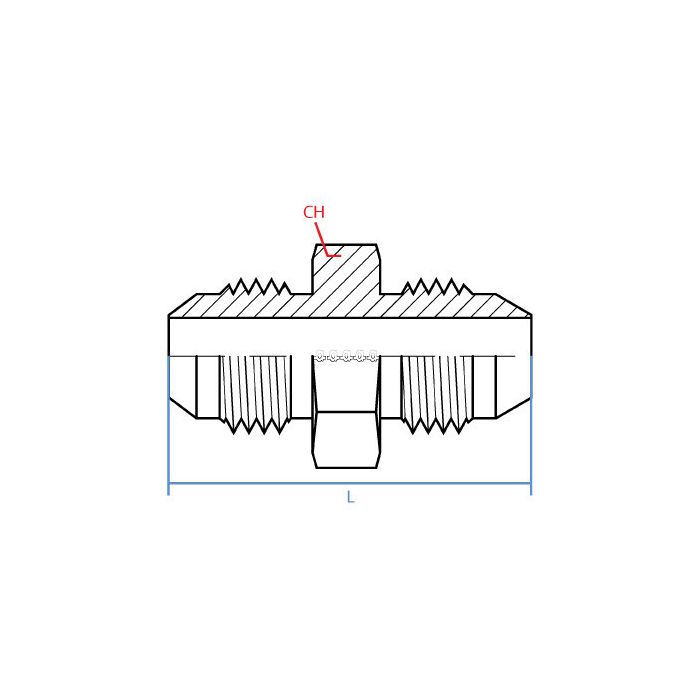

CH Width 22mm	L Length 40.4mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout 9/16 - 18 UNF	Side 1 Gender M	Side 1 Size 3/8"	Side 1 Type Jic	Side 2 Callout G 3/8 - 19	Side 2 Gender M	Side 2 Size 3/8"	Side 2 Type Jis	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9337-06-06	Product Weight 0.10 lbs

Product Questions & Answers 3

Product Questions & Answers

trying to hook a JIC line to a JIS port, is this the right adapter for that?

Question by: Warren E on Mar 25, 2026, 4:01 PM

For connecting those two standards, it bridges a 9/16-18 UNF JIC male end to a G 3/8-19 JIS male end. Both sides are 3/8 size, and it is a straight steel adapter meant to make a secure, leak-free connection between compatible hydraulic lines.

Answer by: Customer Support on Mar 27, 2026, 6:21 AM

Will this fitting hold up okay in a hydraulic system that runs pretty much non-stop all day?

Question by: Rex M on Nov 3, 2025, 2:24 PM

Manufactured by Adaptall with robust steel, this adapter is durable enough to meet the requirements of demanding industrial environments.

Answer by: Customer Support on Nov 5, 2025, 8:45 AM

What thread types does this adapter connect on each end, and are both sides the same size?

Question by: Johnny R on Nov 1, 2025, 1:33 PM

Both ends are sized at 3/8", but the thread types are different. One side is a 9/16-18 UNF JIC male, and the other is a G 3/8-19 JIS male. So you're getting a straight adapter that bridges those two standards without any size change between ends.

Answer by: Customer Support on Nov 3, 2025, 8:14 AM
