Male Npt X Female Metric Fixed

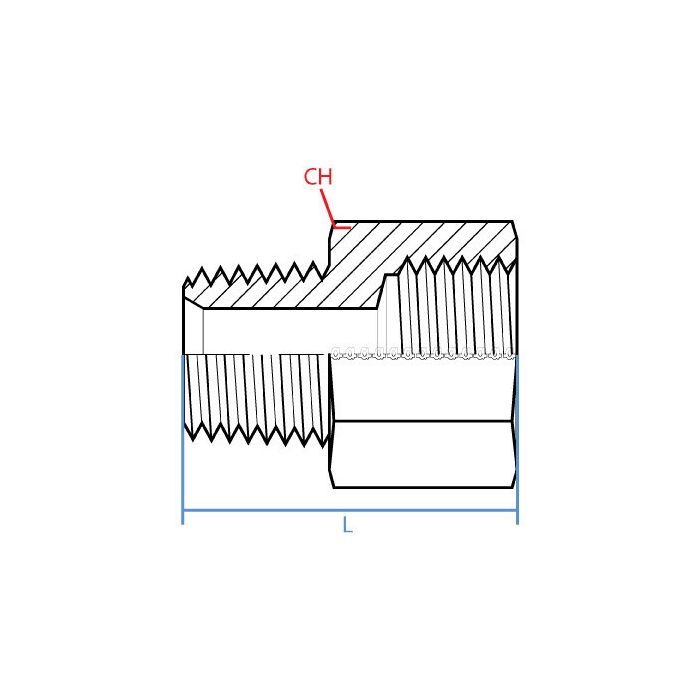

CH Width 28.5mm	L Length 44.3mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout 1/2 - 14 NPTF	Side 1 Gender M	Side 1 Size 1/2"	Side 1 Type Npt	Side 2 Callout M22 X 1.5	Side 2 Gender F	Side 2 Size 22mm	Side 2 Type Metric	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9325-08-22X1.5	Product Weight 0.20 lbs

Product Questions & Answers 1

Product Questions & Answers

Got a piece of equipment running M22 x 1.5 female ports and my supply line comes out NPT, this adapter gonna close that gap straight up, no extra fittings needed?

Question by: Glen W on Sep 1, 2025, 10:12 AM

That's what this one's built for. One end is a 1/2-14 NPTF male thread, the other is M22 x 1.5 female, and the straight fixed design means you're connecting those two standards directly with nothing in between. Steel construction holds up in real working conditions, and at 44.3mm overall length it stays pretty compact, so it won't eat up space in a tight circuit.

Answer by: Customer Support on Sep 3, 2025, 6:03 AM
