Male Npt X Female Metric Fixed 9325-06-14X1.5

Specifications

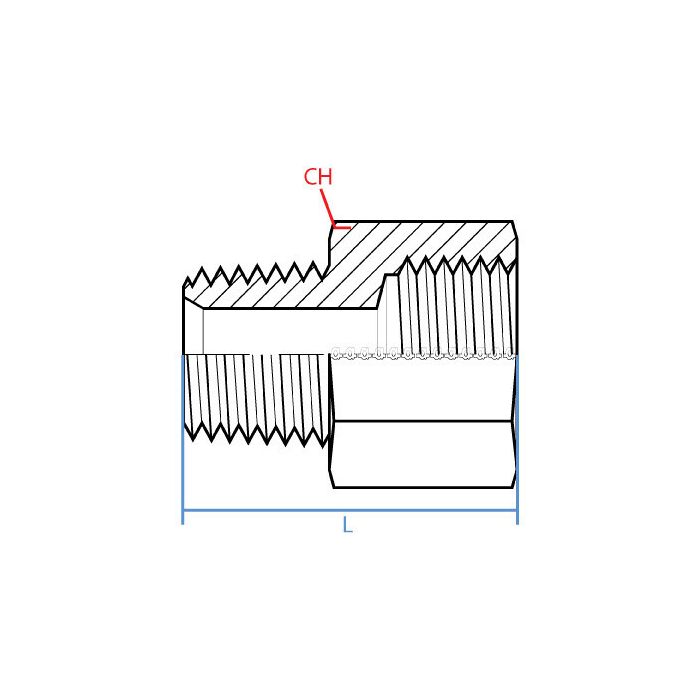

CH Width 20.5mm	L Length 39mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout 3/8 - 18 NPTF	Side 1 Gender M	Side 1 Size 3/8"	Side 1 Type Npt	Side 2 Callout M14 X 1.5	Side 2 Gender F	Side 2 Size 14mm	Side 2 Type Metric	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9325-06-14X1.5	Product Weight 0.15 lbs

Product Questions & Answers 3

Product Questions & Answers

Got a piece of equipment running metric fittings on one end and NPT on the other. This the kind of adapter that handles that crossover without needing extra parts?

Question by: Wes W on Dec 20, 2025, 4:36 PM

That's what this one's built for. One end is 3/8" male NPT, the other is 14mm female metric with a 1.5 thread pitch. Both connection types on a single straight adapter, so you're not stacking fittings or adding length where you don't need it. Overall length runs 39mm, and the wrench flat is 20.5mm if you need to torque it down clean.

Answer by: Customer Support on Dec 22, 2025, 8:14 AM

So, this thing's got a metric end and a NPT end? Just wanna make sure I'm readin' it right.

Question by: Neal D on Mar 26, 2026, 6:28 AM

That's right. It's a straight adapter going from a 3/8" male NPT to a 14mm female Metric connection.

Answer by: Customer Support on Mar 28, 2026, 6:10 AM

trying to hook a 3/8 npt line up to an m14x1.5 port, is this the right adapter?

Question by: Ricky W on May 18, 2025, 10:02 AM

For that kind of mix-and-match, it bridges a 3/8 - 18 NPTF male on one side to an M14 x 1.5 female metric on the other, in a straight steel adapter.

Answer by: Customer Support on May 19, 2025, 9:43 PM
