90* Male X Female Jis

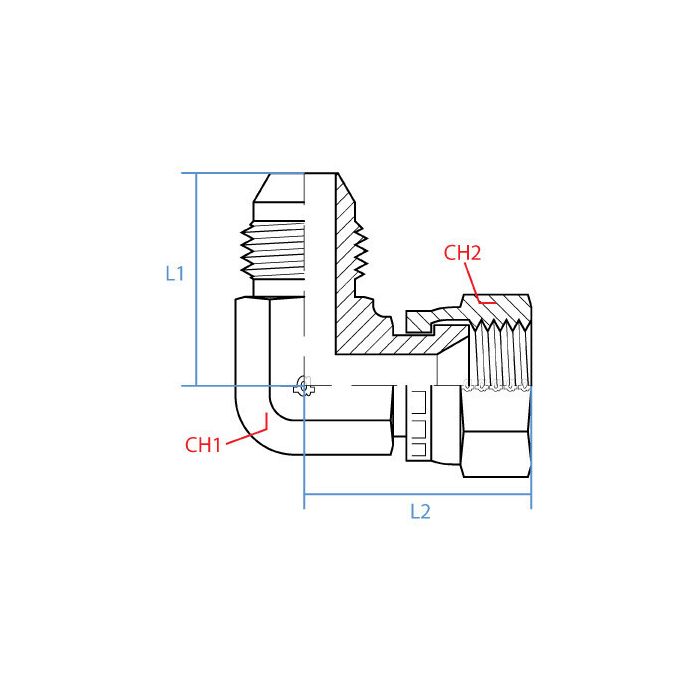

CH1 Width 22mm	CH2 Width 27mm	L1 Length 35mm	L2 Length 40mm	Adaptall Material Steel	Adaptall Shape 90° Elbow	Side 1 Callout G 1/2 - 14	Side 1 Gender M	Side 1 Size 1/2"	Side 1 Type Jis	Side 2 Callout G 1/2 - 14	Side 2 Gender F	Side 2 Size 1/2"	Side 2 Type Jis	Alternate Part Numbers Alternate Part Number C1HE31	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9292-08-08	Product Weight 0.40 lbs

Product Questions & Answers 1

Product Questions & Answers

got a tight spot behind a valve bank, will this elbow let me turn the line 90 degrees without sticking way out?

Question by: Frank C on Apr 26, 2025, 8:41 AM

In tight routing situations, the 90° elbow shape helps you change direction at a right angle so you are not forced to run a straight fitting. The overall lengths are compact at L1 35mm and L2 40mm, which helps keep the profile from getting too bulky.

Answer by: Customer Support on Apr 28, 2025, 6:52 AM
