Female Jis Run Tee

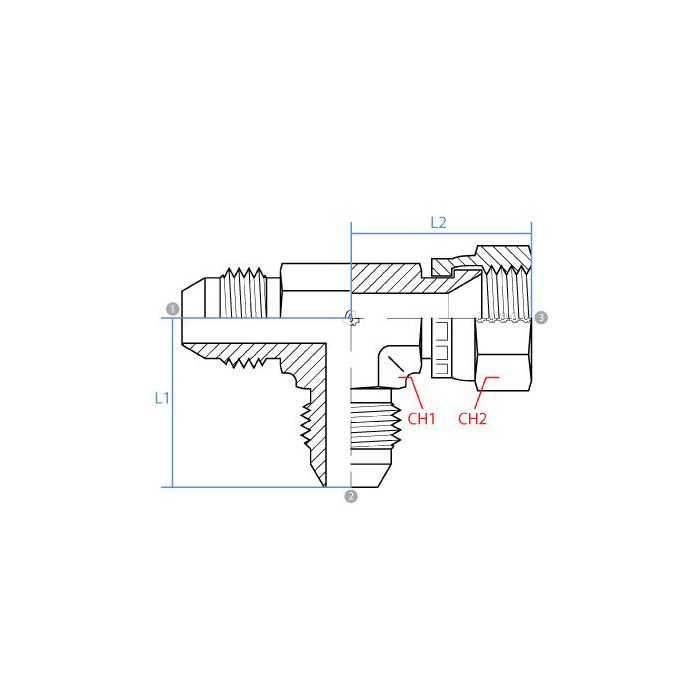

CH1 Width 22mm	CH2 Width 27mm	L1 Length 31mm	L2 Length 37mm	Adaptall Material Steel	Adaptall Shape Tee	Side 1 Callout G 1/2 - 14	Side 1 Gender M	Side 1 Size 1/2"	Side 1 Type Jis	Side 2 Callout G 1/2 - 14	Side 2 Gender M	Side 2 Size 1/2"	Side 2 Type Jis	Side 3 Callout G 1/2 - 14	Side 3 Gender F	Side 3 Size 1/2"	Side 3 Type JIS	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9291-08-08-08	Product Weight 0.46 lbs

Product Questions & Answers 2

Product Questions & Answers

Will this here tee fitting work alright with my existing JIS setup? I got half-inch connections already.

Question by: Troy F on May 3, 2025, 12:13 PM

This Female JIS Run Tee is indeed compatible with your existing 1/2" JIS connections, as all three sides (Side 1, Side 2, and Side 3) feature 1/2" JIS connections. Sides 1 and 2 are Male, while Side 3 is Female.

Answer by: Customer Support on May 5, 2025, 6:20 AM

what's the thread callout on all three ports of this tee? trying to make sure everything lines up before I order

Question by: Sherry P on Jul 19, 2025, 8:15 AM

All three sides carry a G 1/2 - 14 callout at the 1/2" JIS size. Sides 1 and 2 are male connections, and Side 3 is female. So if you're running a JIS line that needs a branch off the main run, the threading should match up across the board.

Answer by: Customer Support on Jul 21, 2025, 6:30 AM
