Female Jis Run Tee 9291-06-06-06

Specifications

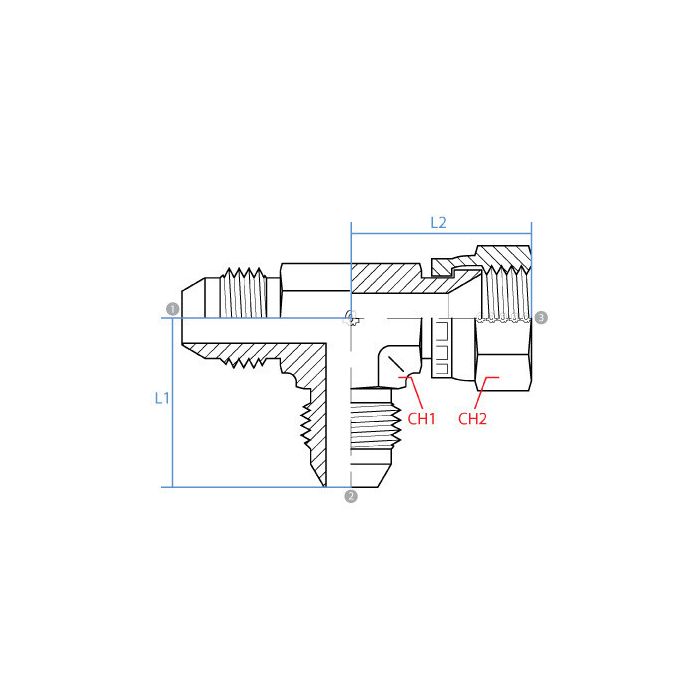

CH1 Width 19mm	CH2 Width 22mm	L1 Length 31mm	L2 Length 33mm	Adaptall Material Steel	Adaptall Shape Tee	Side 1 Callout G 3/8 - 19	Side 1 Gender M	Side 1 Size 3/8"	Side 1 Type Jis	Side 2 Callout G 3/8 - 19	Side 2 Gender M	Side 2 Size 3/8"	Side 2 Type Jis	Side 3 Callout G 3/8 - 19	Side 3 Gender F	Side 3 Size 3/8"	Side 3 Type JIS	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9291-06-06-06	Product Weight 0.30 lbs

Product Questions & Answers 3

Product Questions & Answers

trying to tee off a 3/8 jis line, what are the thread types on each port of this run tee?

Question by: Jean M on Aug 19, 2025, 6:46 PM

For connections, Side 1 and Side 2 are 3/8 inch male JIS with a G 3/8 - 19 callout, and Side 3 is 3/8 inch female JIS with the same G 3/8 - 19 callout.

Answer by: Customer Support on Aug 20, 2025, 9:52 PM

all three ports on this thing are 3/8 JIS? just want to make sure before i order

Question by: Marvin M on Dec 7, 2025, 3:21 PM

Two of the ports are 3/8" male JIS and the third is 3/8" female JIS. So the run sides come in as male and the branch side is female. All three are the same 3/8" size, just different genders depending on which port you're working with.

Answer by: Customer Support on Dec 9, 2025, 8:49 AM

Will this tee work with standard JIC fittings, or do I need to get JIS specific stuff?

Question by: Larry H on Aug 29, 2025, 1:08 PM

This tee fitting requires JIS (Japanese Industrial Standard) connections on all three ports. It will not directly connect to JIC (Joint Industry Council) fittings. You'll need to use JIS-compatible components for a secure, leak-free hydraulic system.

Answer by: Customer Support on Aug 31, 2025, 10:00 AM
