Female Jis Run Tee 9291-04-04-04

Specifications

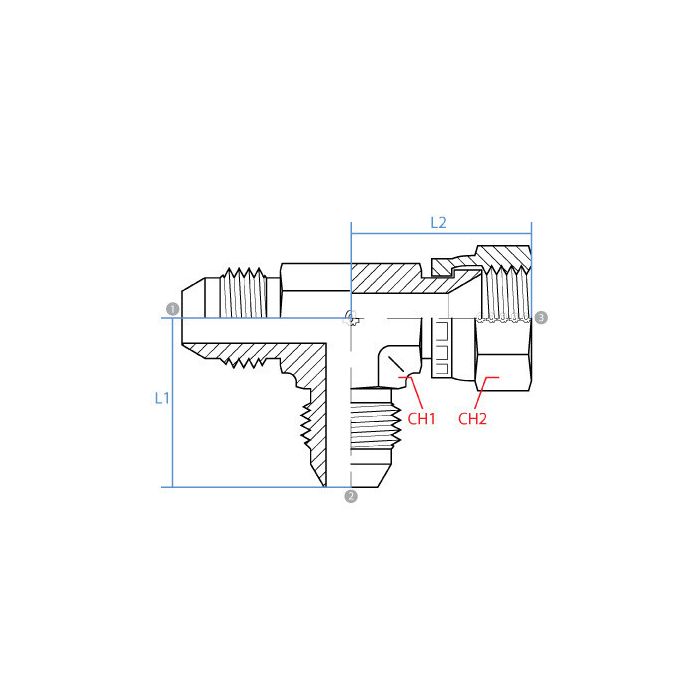

CH1 Width 13mm	CH2 Width 19mm	L1 Length 25mm	L2 Length 30mm	Adaptall Material Steel	Adaptall Shape Tee	Side 1 Callout G 1/4 - 19	Side 1 Gender M	Side 1 Size 1/4"	Side 1 Type Jis	Side 2 Callout G 1/4 - 19	Side 2 Gender M	Side 2 Size 1/4"	Side 2 Type Jis	Side 3 Callout G 1/4 - 19	Side 3 Gender F	Side 3 Size 1/4"	Alternate Part Numbers Alternate Part Number MI-04518089, Alternate Part Number MINO-03671X65000	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9291-04-04-04	Product Weight 0.20 lbs

Product Questions & Answers 3

Product Questions & Answers

What kinda pressure can this tee handle, generally speakin'?

Question by: Shawn S on Jan 11, 2026, 9:38 AM

This fitting is made of steel, so it's suitable for high-pressure hydraulic applications, but specific pressure ratings aren't listed.

Answer by: Customer Support on Jan 12, 2026, 8:55 PM

got two JIS male ends and one JIS female on this tee, right?

Question by: Dwight S on Mar 17, 2026, 7:08 PM

Connection-wise it is a run tee with two JIS male ports and one JIS female port, all in the same G 1/4 - 19 callout and 1/4 inch size.

Answer by: Customer Support on Mar 19, 2026, 10:53 AM

what's the port setup on this tee? trying to figure out if the branch or the run is the female end

Question by: Warren S on Sep 26, 2025, 10:05 AM

The two inline ports (the run) are both JIS male, G 1/4-19 thread, 1/4" size. The branch port coming off the side is the female JIS connection, same G 1/4-19 callout and 1/4" size. So if you're hydraulic connections a line straight through and need to tap off with a female port, this is the orientation you want.

Answer by: Customer Support on Sep 28, 2025, 6:22 AM
