Male Jis X Male O-Ring Boss 9277-06-04

Specifications

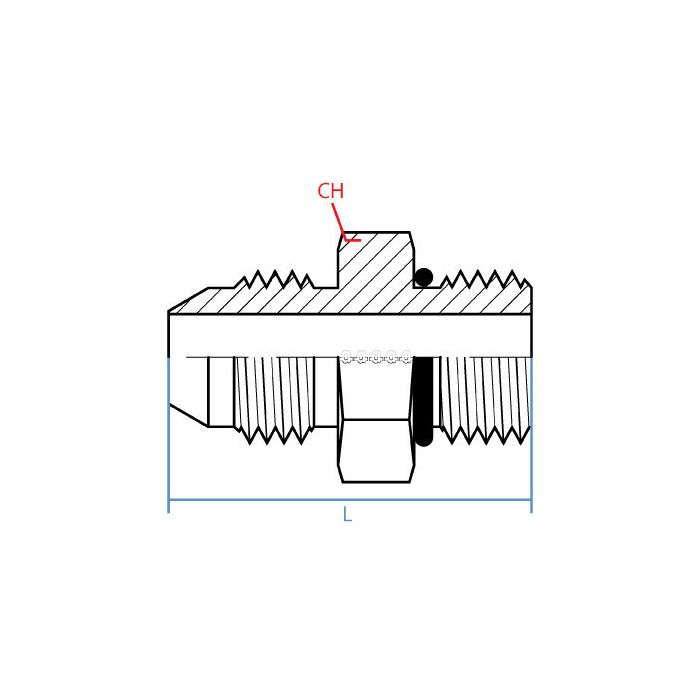

CH Width 17mm	L Length 33.2mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout G 3/8 - 19	Side 1 Gender M	Side 1 Size 3/8"	Side 1 Type Jis	Side 2 Callout 7/16 - 20 UNF	Side 2 Gender M	Side 2 Size 1/4"	Side 2 Type Orb-Sae	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9277-06-04	Product Weight 0.05 lbs

Product Questions & Answers 3

Product Questions & Answers

Got a piece of equipment with JIS ports and I need to tie it into a SAE ORB system. This the right adapter to make that happen?

Question by: Shawn B on Jan 9, 2026, 1:04 PM

That's what this one's built for. One end runs a G 3/8 - 19 JIS thread at 3/8" size, and the other end is a 7/16 - 20 UNF O-Ring Boss thread at 1/4" size. So if your equipment has JIS-threaded ports and you need to connect into SAE ORB fittings, this adapter bridges that gap directly without needing extra pieces in between.

Answer by: Customer Support on Jan 11, 2026, 6:01 AM

got a machine with a JIS port, but my hose end is SAE ORB. is this the little adapter that bridges those two?

Question by: Rusty R on Feb 25, 2026, 1:35 PM

Built for mixed-standard hookups, it converts a male JIS connection on one side to a male SAE O-Ring Boss (ORB) on the other. The JIS side is G 3/8 - 19 (3/8 inch size), and the ORB side is 7/16 - 20 UNF (1/4 inch size), so it lets JIS-threaded ports interface with ORB fittings in the same hydraulic circuit.

Answer by: Customer Support on Feb 27, 2026, 6:48 AM

Will this fitting work to adapt a Komatsu excavator's JIS ports to SAE O-ring boss?

Question by: Troy F on Apr 4, 2026, 7:14 AM

This adapter provides a reliable crossover connection between JIS and SAE O-Ring Boss (ORB) hydraulic port standards, which makes it well-suited for interfacing equipment with JIS-threaded ports to SAE ORB fittings. That kind of mixed-standard setup is common in mobile equipment like excavators.

Answer by: Customer Support on Apr 6, 2026, 7:43 AM
